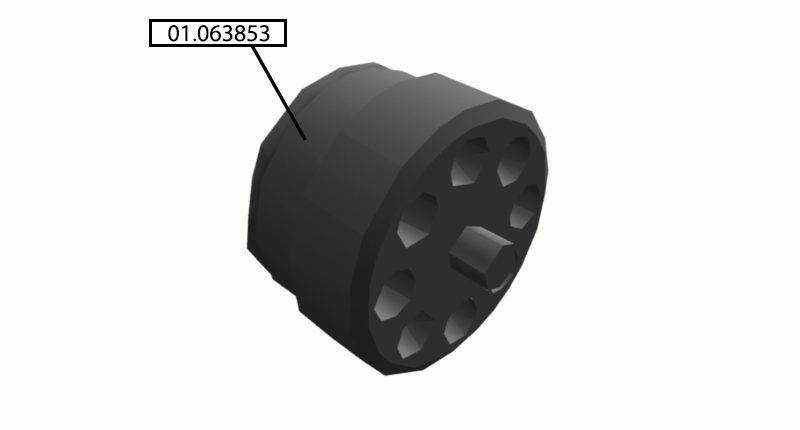

Replace The Check Valve

Parts List Reference Files Tools Required Torque Chart
Note: Most common screw sizes shown. Always consult manufacturers recommendations.
Screw Size Grade Torque Specs Range
M5 12.9 7.7-10.3 N-m
M6 12.9 13.1-17.6 N-m
M8 12.9 32.1-42.6 N-m
M10 12.9 64-84 N-m
M12 12.9 110-146 N-m
M16 12.9 274-365 N-m
M20 12.9 534-712 N-m
M24 12.9 923-1231 N-m
Tools Required
1. Set of Metric Allen Wrenches
2. Set of Metric Open End Wrenches
3. Set of Metric Sockets
4. Ratchet and Extensions
5. Torque Wrench
6. Lift Assist Device
7. Depth Gauge
8. Lubricating Oil
9. Isopropyl Alcohol
10. Lint Free Rag
11. Fine Stone

Step 1: ECPL

Step 2: Open Operator Door

Step 3: Place Work Platform

Step 4: Block Tool Change Door

Step 5: Loosen and Lower Tool Locking Mechanism

Step 6: Unscrew and Remove Clamping Bolt Bush

Step 7: Remove Retaining Ring

Step 8: Unscrew Check Valve:

Step 9: Screw in Check Valve

Step 10: Place Retainer Ring

Step 11: Screw Bush In

Step 12: Tighten Tool Locking Mechanism

Step 13: Remove Block

Step 14: Remove Work Place Platform

Step 15: Close and Lock Work Area Safety Door

Step 16: ECPL
