X-Axis Motor Replacement

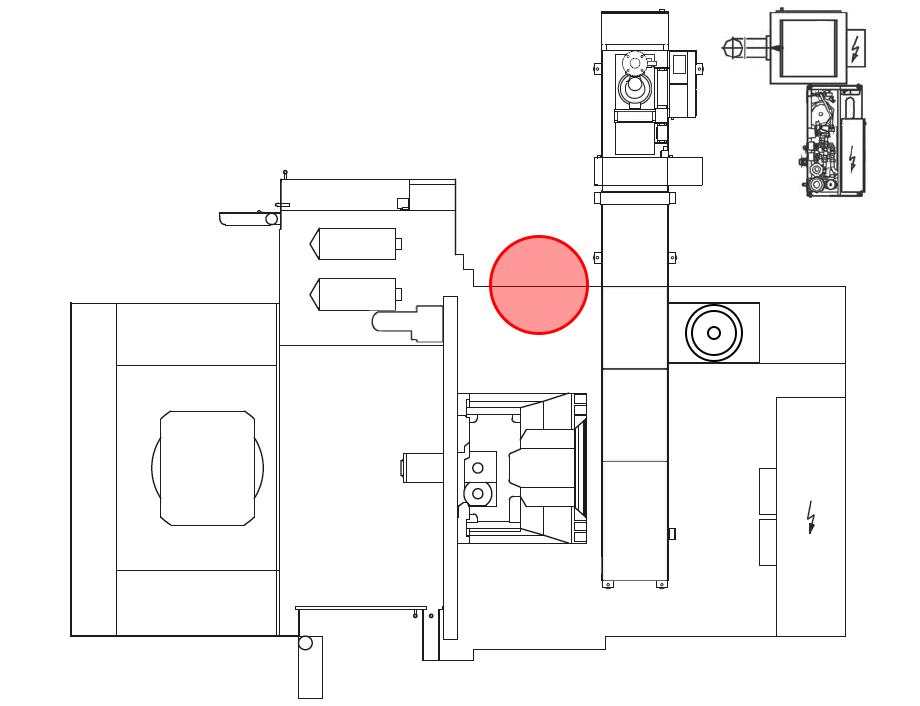

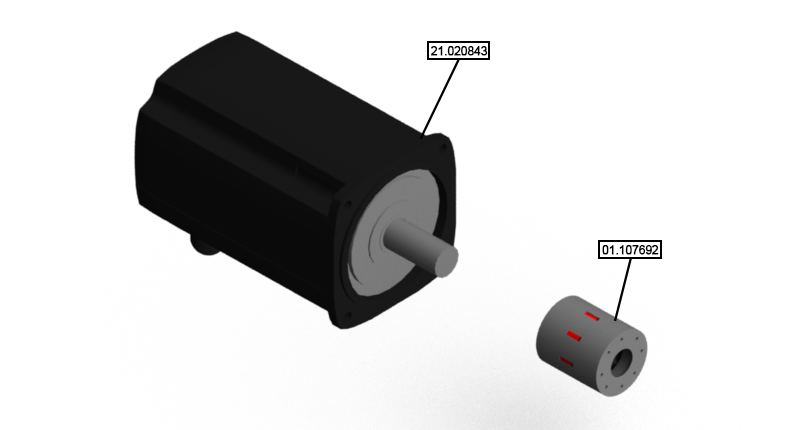

Parts List Reference Files Tools Required Torque Chart
Note: Most common screw sizes shown. Always consult manufacturers recommendations.
Screw Size Grade Torque Specs Range
M5 12.9 7.7-10.3 N-m
M6 12.9 13.1-17.6 N-m
M8 12.9 32.1-42.6 N-m
M10 12.9 64-84 N-m
M12 12.9 110-146 N-m
M16 12.9 274-365 N-m
M20 12.9 534-712 N-m
M24 12.9 923-1231 N-m
Tools Required
1. Set of Metric Allen Wrenches
2. Set of Metric Open End Wrenches
3. Set of Metric Sockets
4. Ratchet and Extensions
5. Torque Wrench
6. Lift Assist Device
7. Depth Gauge
8. Lubricating Oil
9. Isopropyl Alcohol
10. Lint Free Rag
11. Fine Stone

Step 1: ECPL

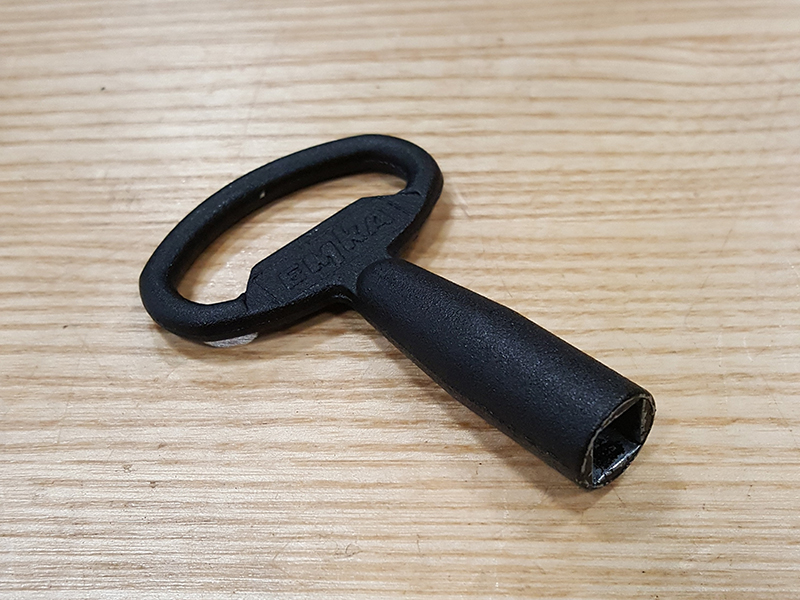

Step 2: Unlock Maint. Opening / Remove Panel

Step 3: Disconnect Motor Connections / Attach Lift Assist

Step 4: Remove Motor

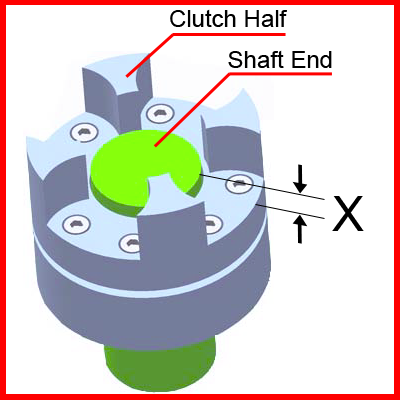

Step 5: Measure Coupling

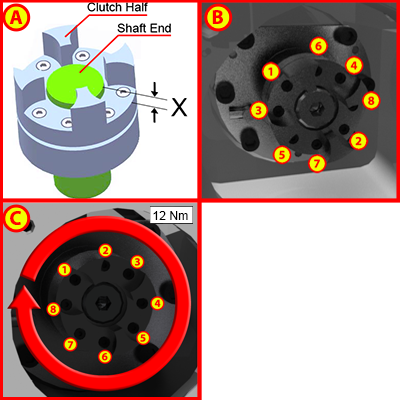

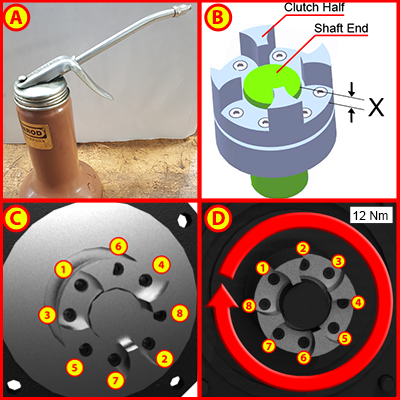

Step 6: Lubricate Motor / Measure Coupling / Install Screws / Torque

Step 7: Measure Coupling / Remove Insert

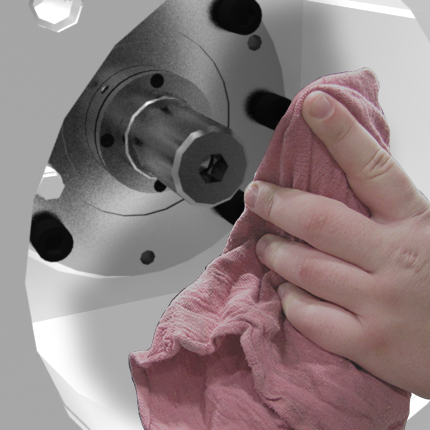

Step 8: Clean Ballscrew End / Lubricate

Step 9: Install Coupling / Install Screws / Torque

Step 10: Install Insert

Step 11: Clean Mounting Surface

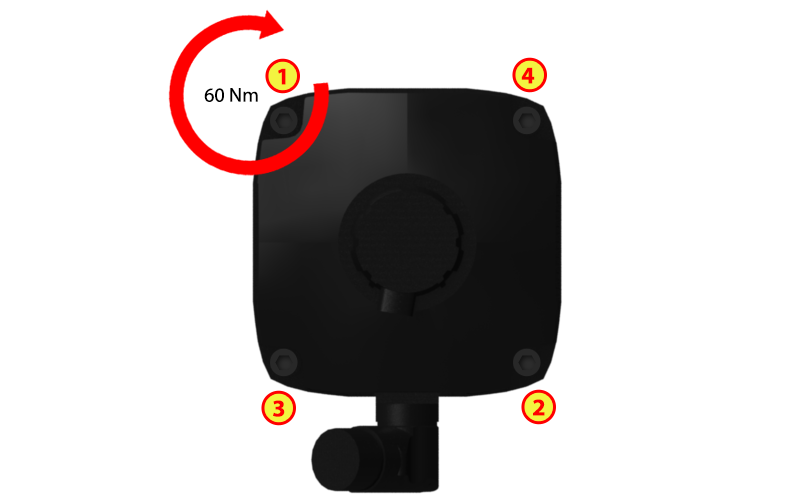

Step 12: Install Motor / Torque

Step 13: Remove Lift Assist / Install Motor Connections

Step 14: Install Panel / Lock Maint. Opening

Step 15: ECPL
