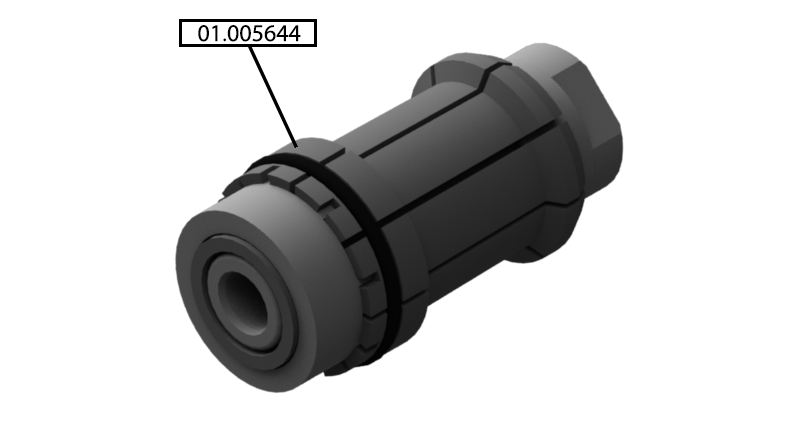

Replacing Spindle Collet

Parts List Reference Files Tools Required Torque Chart
Note: Most common screw sizes shown. Always consult manufacturers recommendations.
Screw Size Grade Torque Specs Range
M5 12.9 7.7-10.3 N-m
M6 12.9 13.1-17.6 N-m
M8 12.9 32.1-42.6 N-m
M10 12.9 64-84 N-m
M12 12.9 110-146 N-m
M16 12.9 274-365 N-m
M20 12.9 534-712 N-m
M24 12.9 923-1231 N-m
Tools Required
1. Set of Metric Allen Wrenches
2. Set of Metric Open End Wrenches
3. Set of Metric Sockets
4. Ratchet and Extensions
5. Torque Wrench
6. Lift Assist Device
7. Depth Gauge
8. Lubricating Oil
9. Isopropyl Alcohol
10. Lint Free Rag
11. Fine Stone

Step 1: ECPL

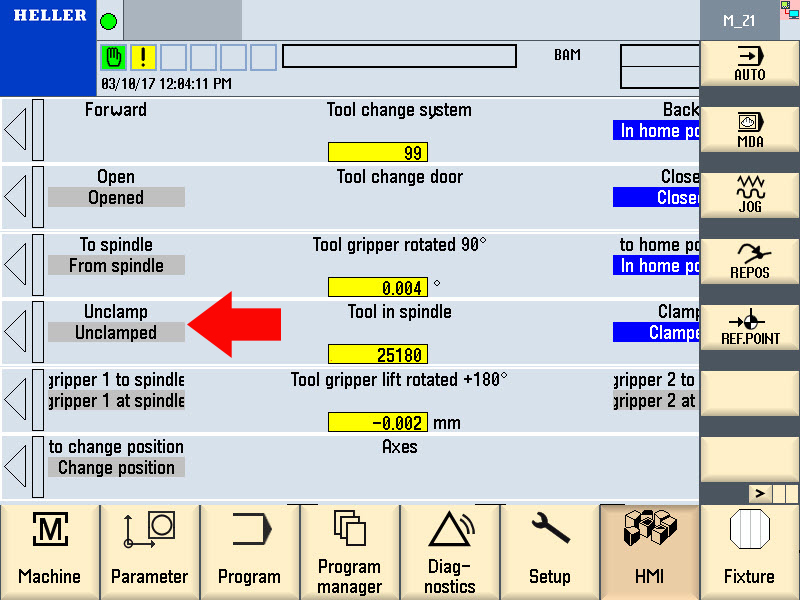

Step 2: Unclamp Spindle From HMI

Step 3: Open Work Area Safety Door

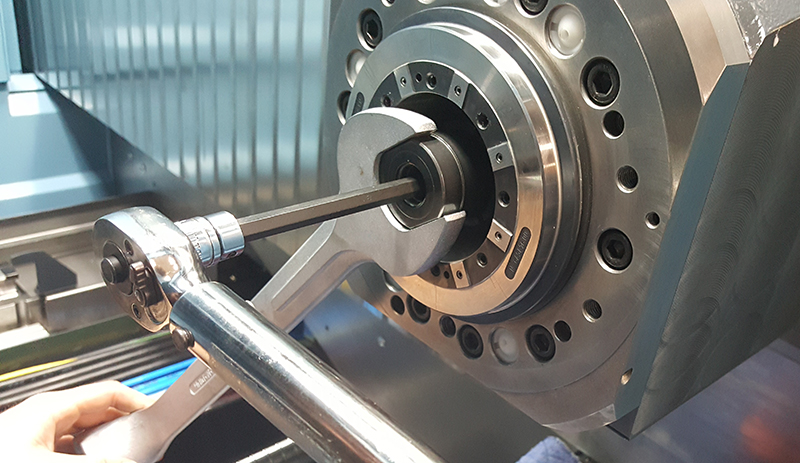

Step 4: Loosen Bolt

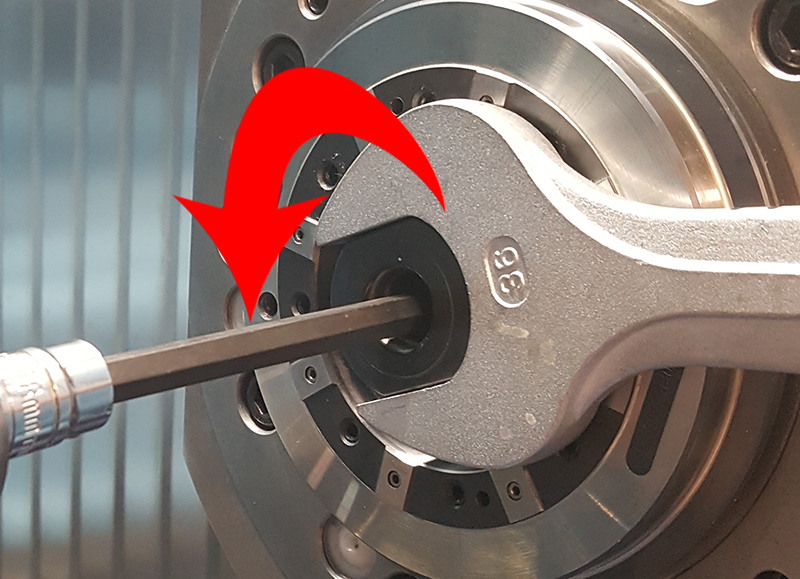

Step 5: Loosen and Remove Collet

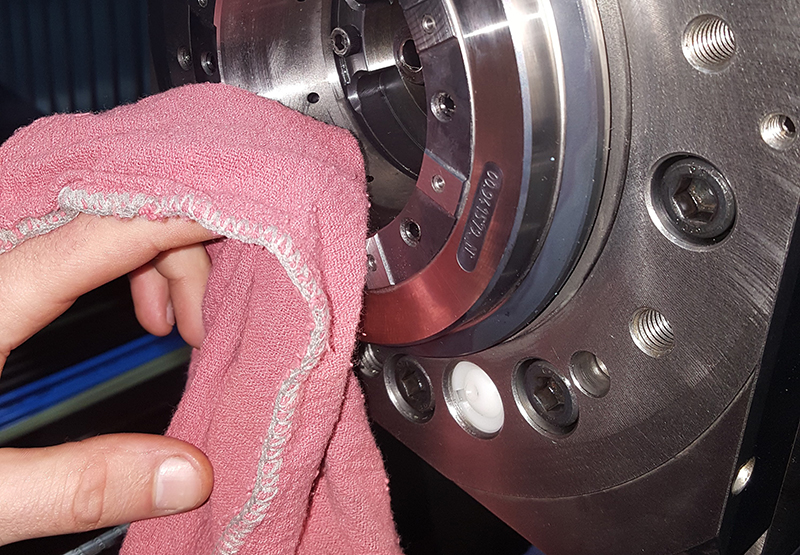

Step 6: Clean Mounting Surfaces

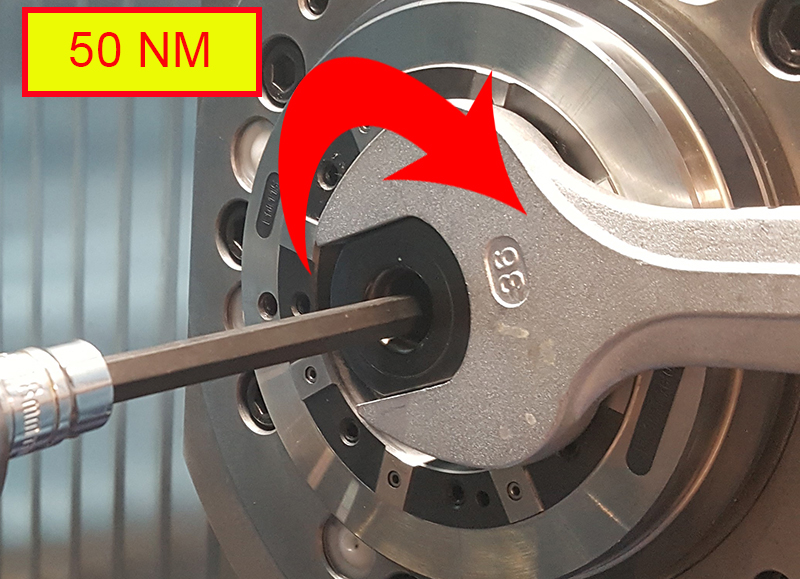

Step 7: Insert and Tighten New Collet

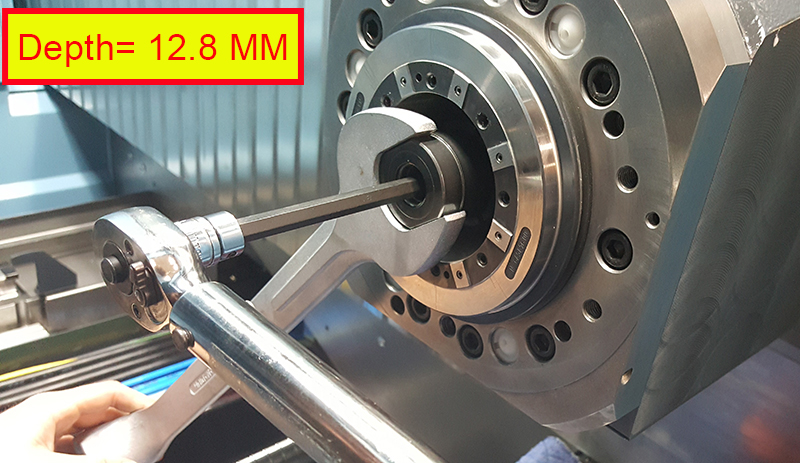

Step 8: Tighten Bolt

Step 9: Close Work Area Safety Door

Step 10: Adjust Clamping Values

"See Procedure Clamping Values"

Step 11: ECPL
