Replace Tool Change Arm

Parts List Reference Files Tools Required Torque Chart
Note: Most common screw sizes shown. Always consult manufacturers recommendations.
Screw Size Grade Torque Specs Range
M5 12.9 7.7-10.3 N-m
M6 12.9 13.1-17.6 N-m
M8 12.9 32.1-42.6 N-m
M10 12.9 64-84 N-m
M12 12.9 110-146 N-m
M16 12.9 274-365 N-m
M20 12.9 534-712 N-m
M24 12.9 923-1231 N-m
Tools Required
1. Set of Metric Allen Wrenches
2. Set of Metric Open End Wrenches
3. Set of Metric Sockets
4. Ratchet and Extensions
5. Torque Wrench
6. Lift Assist Device
7. Depth Gauge
8. Lubricating Oil
9. Isopropyl Alcohol
10. Lint Free Rag
11. Fine Stone

Step 1: ECPL

Step 2: Open Tool Change Door

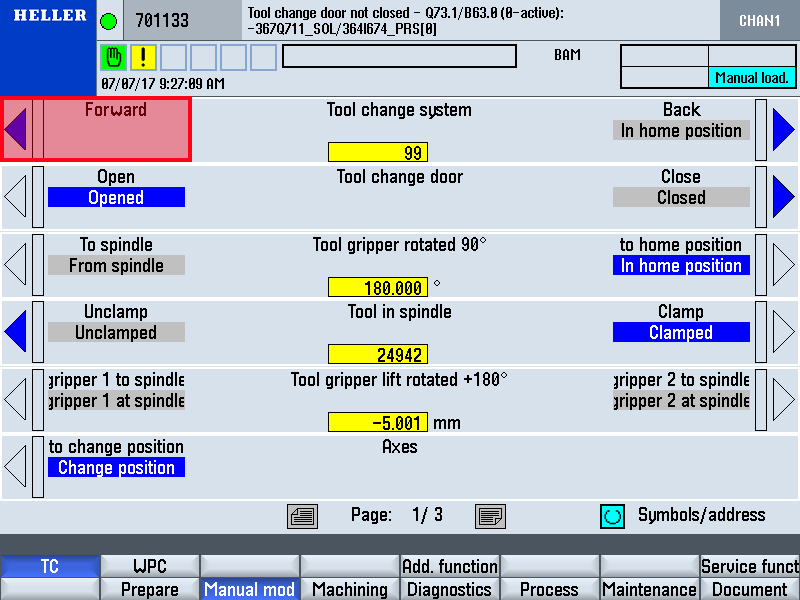

Step 3: Extend Arm

Step 4: Open Operator Door

Step 5: Place Work Platform

Step 6: Block Tool Change Door

Step 7: Remove Dowel Pins

Step 8: Remove Screws

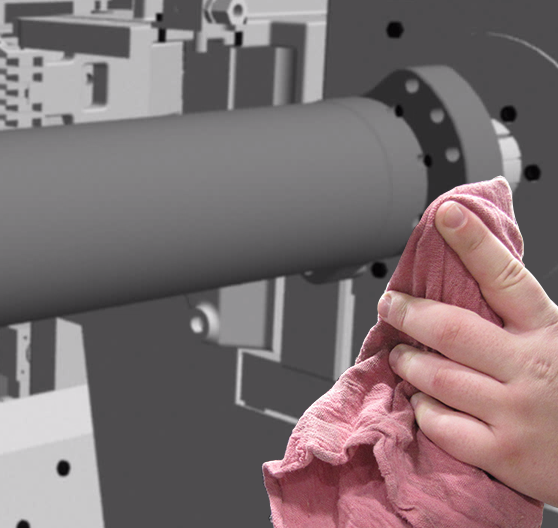

Step 9: Remove Tool Change Arm and Clean Mounting Surface

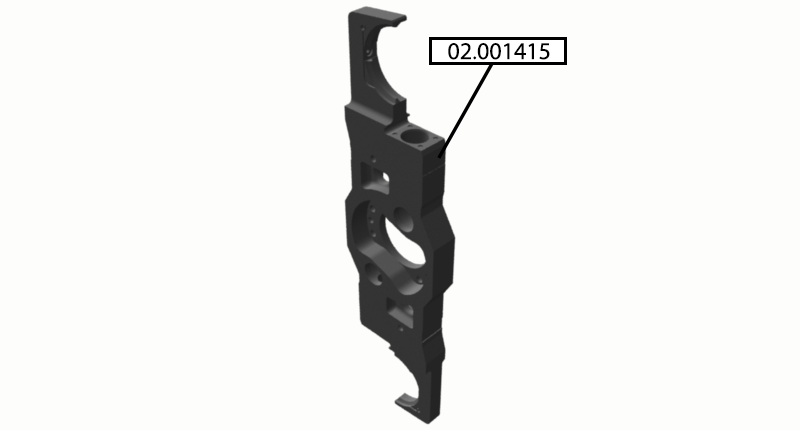

Step 10: Install New Tool Change Arm

Step 11: Insert Screws

Step 12: Insert Dowel Pins

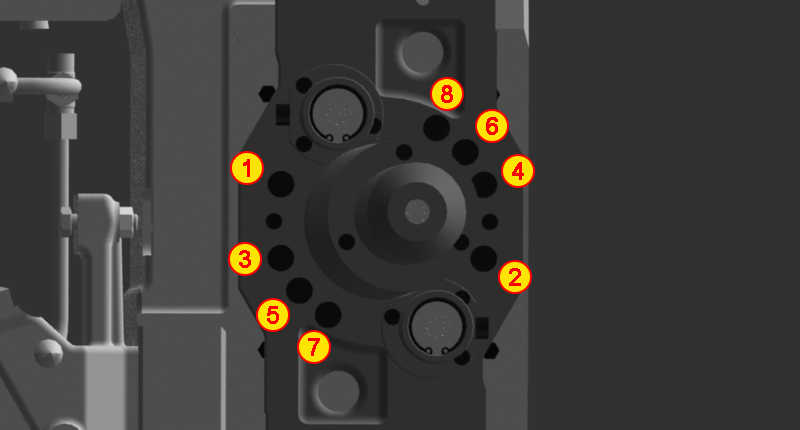

Step 13: Cross Tighten

Step 14: Remove Block

Step 15: Remove Work Place Platform

Step 16: Close and Lock Work Area Safety Door

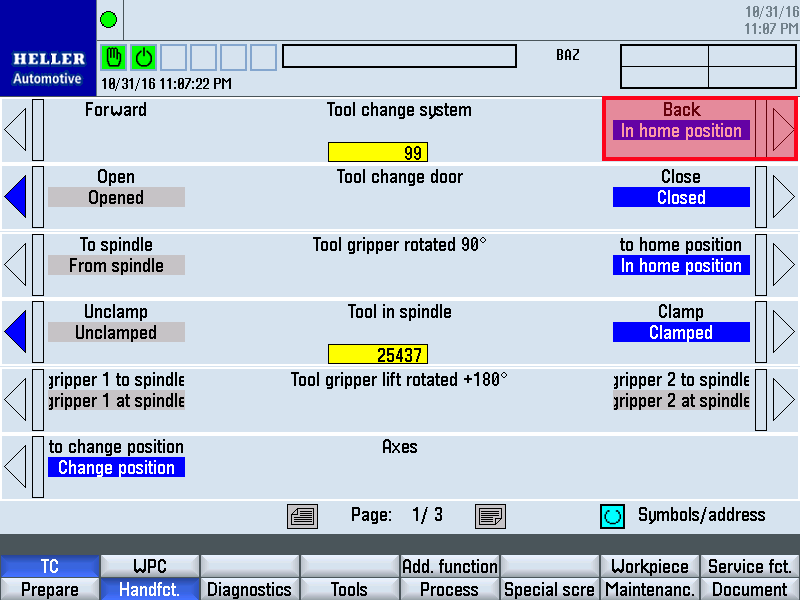

Step 17: Return Arm to Home Position

Step 18: Close Tool Change Door

Step 19: ECPL
