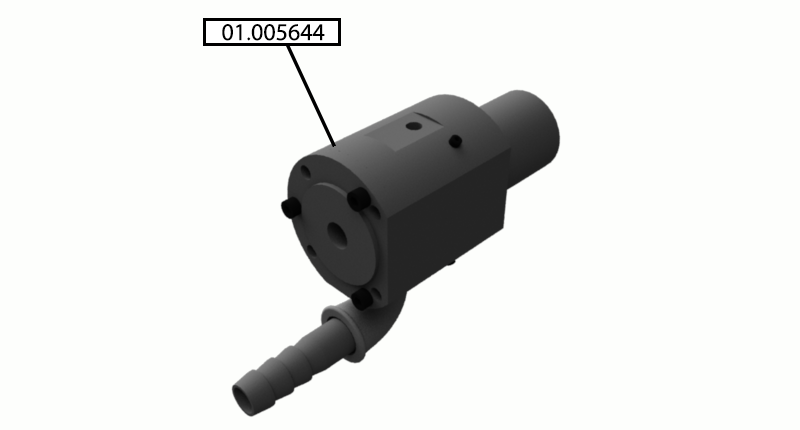

Replacing Rotary Distributor

Parts List Reference Files Tools Required Torque Chart
Note: Most common screw sizes shown. Always consult manufacturers recommendations.
Screw Size Grade Torque Specs Range
M5 12.9 7.7-10.3 N-m
M6 12.9 13.1-17.6 N-m
M8 12.9 32.1-42.6 N-m
M10 12.9 64-84 N-m
M12 12.9 110-146 N-m
M16 12.9 274-365 N-m
M20 12.9 534-712 N-m
M24 12.9 923-1231 N-m
Tools Required
1. Set of Metric Allen Wrenches
2. Set of Metric Open End Wrenches
3. Set of Metric Sockets
4. Ratchet and Extensions
5. Torque Wrench
6. Lift Assist Device
7. Depth Gauge
8. Lubricating Oil
9. Isopropyl Alcohol
10. Lint Free Rag
11. Fine Stone

Step 1: ECPL

Step 2: Jog Y-Axis

Step 3: Open Rear Maintenance Door

Step 4: Secure Machining Unit

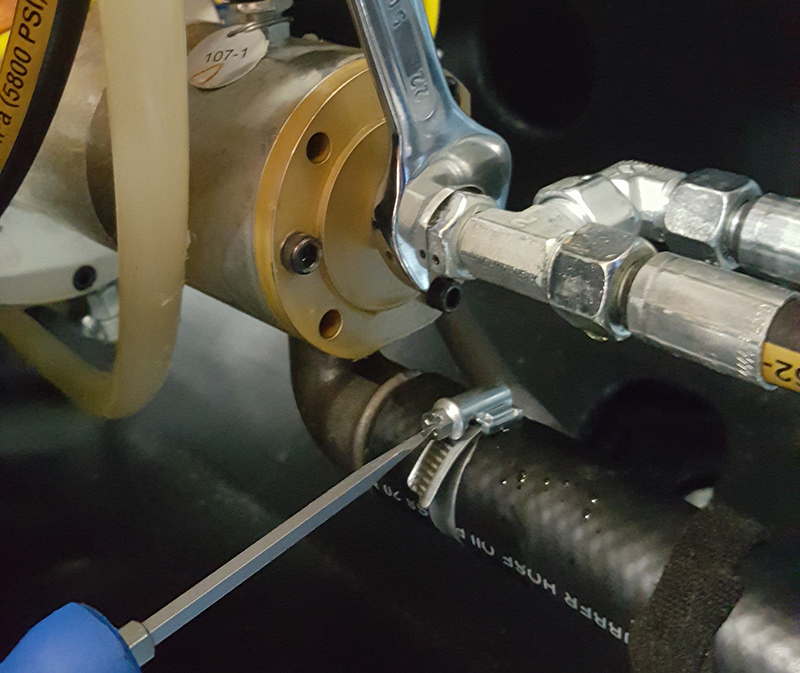

Step 5: Disconnect Services from Rotary Distributor

Step 6: Remove Socket Head Cap Screws

Step 7: Remove Rotary Distributor

Step 8: Install Rotary Distributor

Step 9: Install Socket Head Cap Screws

Step 10: Reconnect Services Back to Rotary Distributor

Step 11: Remove Block

Step 12: Close Rear Maintenance Door

Step 13: ECPL
