Replace Spring of Tool Locking Mechanism

Parts List Reference Files Tools Required Torque Chart
Note: Most common screw sizes shown. Always consult manufacturers recommendations.
Screw Size Grade Torque Specs Range
M5 12.9 7.7-10.3 N-m
M6 12.9 13.1-17.6 N-m
M8 12.9 32.1-42.6 N-m
M10 12.9 64-84 N-m
M12 12.9 110-146 N-m
M16 12.9 274-365 N-m
M20 12.9 534-712 N-m
M24 12.9 923-1231 N-m
Tools Required
1. Set of Metric Allen Wrenches
2. Set of Metric Open End Wrenches
3. Set of Metric Sockets
4. Ratchet and Extensions
5. Torque Wrench
6. Lift Assist Device
7. Depth Gauge
8. Lubricating Oil
9. Isopropyl Alcohol
10. Lint Free Rag
11. Fine Stone

Step 1: ECPL

Step 2: Open Tool Change Door

Step 3: Open Operator Door

Step 4: Install Work Platform

Step 5: Block Tool Change Door

Step 6: Loosen and Lower Tool Locking Mechanism

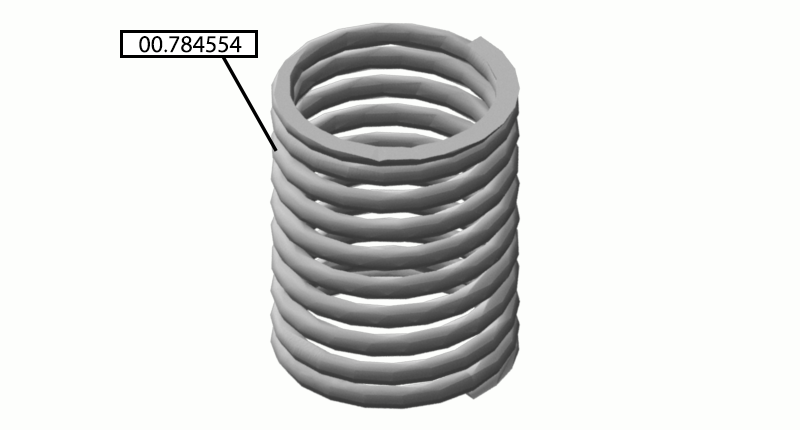

Step 7: Remove Coil Spring

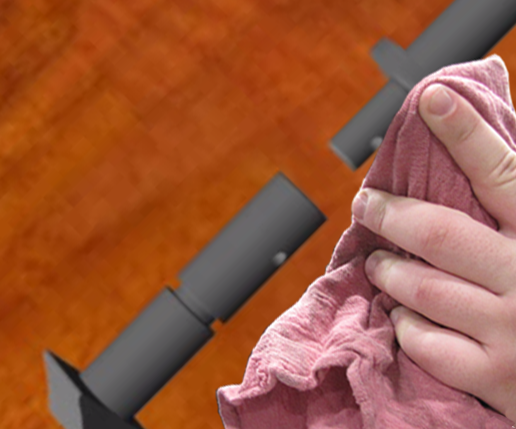

Step 8: Remove Dowel and Ram and Lock and Clean Parts

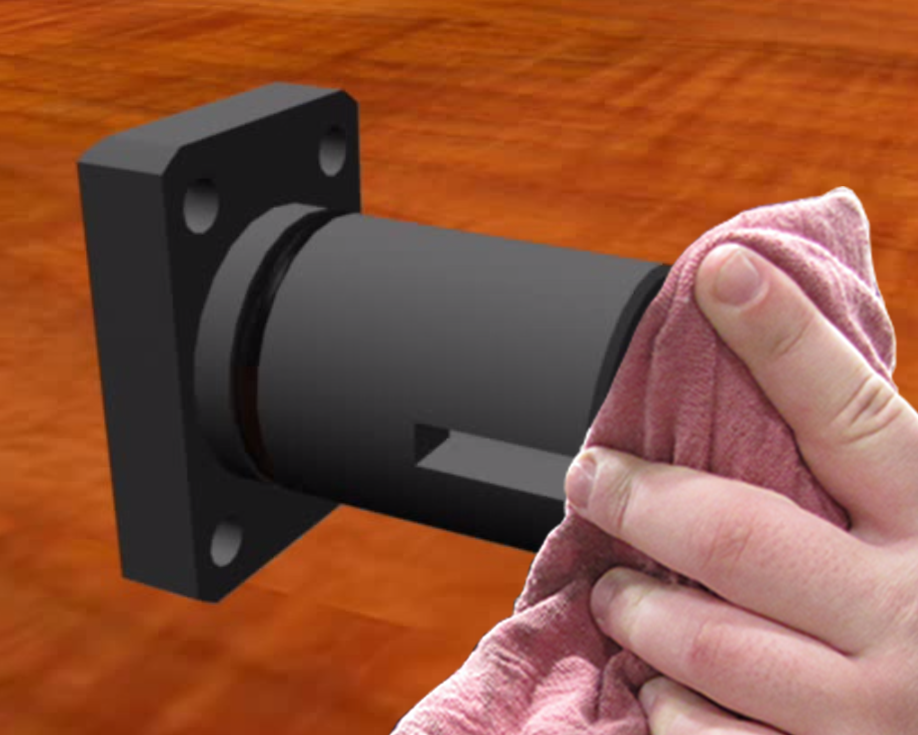

Step 9: Lubricate Ram and Lock and Clean Locking Mechanism

Step 10: Insert Ram and Lock and Install Dowel

Step 11: Insert Spring

Step 12: Tighten Tool Locking Mechanism

Step 13: Remove Block

Step 14: Remove Work Place Platform

Step 15: Close and Lock Work Area Safety Door

Step 16: Close Tool Change Door

Step 17: ECPL
