Replace timing belt

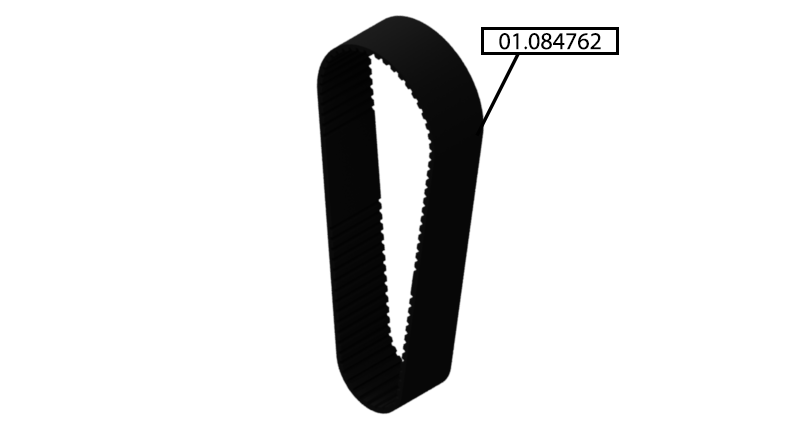

Parts List Reference Files Tools Required Torque Chart

Note: Most common screw sizes shown. Always consult manufacturers recommendations.
Screw Size	Grade	Torque Specs Range
M5	12.9	7.7-10.3 N-m
M6	12.9	13.1-17.6 N-m
M8	12.9	32.1-42.6 N-m
M10	12.9	64-84 N-m
M12	12.9	110-146 N-m
M16	12.9	274-365 N-m
M20	12.9	534-712 N-m
M24	12.9	923-1231 N-m

Tools Required
1.	Set of Metric Allen Wrenches
2.	Set of Metric Open End Wrenches
3.	Set of Metric Sockets
4.	Ratchet and Extensions
5.	Torque Wrench
6.	Lift Assist Device
7.	Depth Gauge
8.	Lubricating Oil
9.	Isopropyl Alcohol
10.	Lint Free Rag
11.	Fine Stone

Step 1: ECPL

Step 2: Refer to Rotary Table Motor Replacement

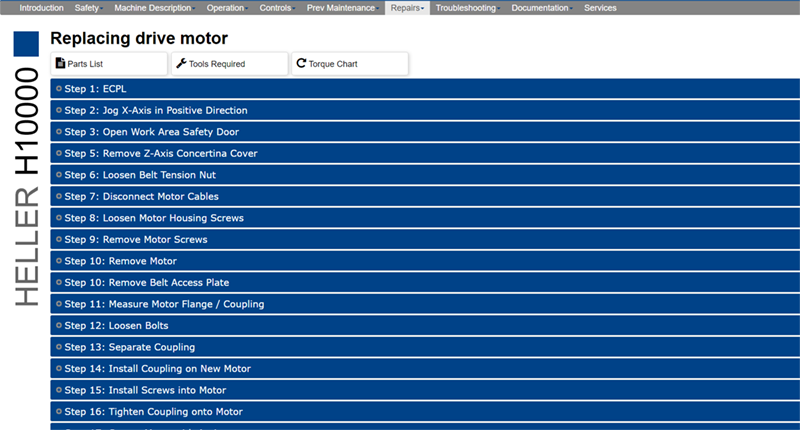

Refer to steps 2-9 of the Rotary Table Motor Replacement procedure for instructions on removing the motor.

Click the back button in your browser to return to this procedure.

Step 3: Remove Timing Belt Cover

Step 4: Remove Snap Ring

Step 5: Loosen Screws and Remove Pulley

Step 6: Remove Belt

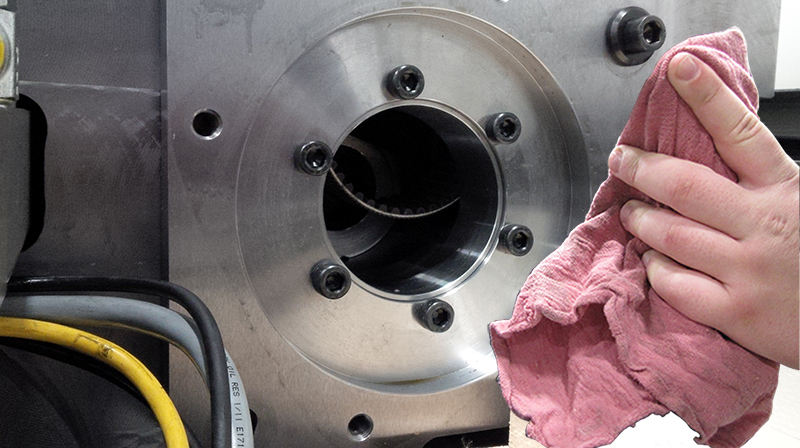

Step 7: Ensure Mounting Areas are Clean

Step 8: Install Belt

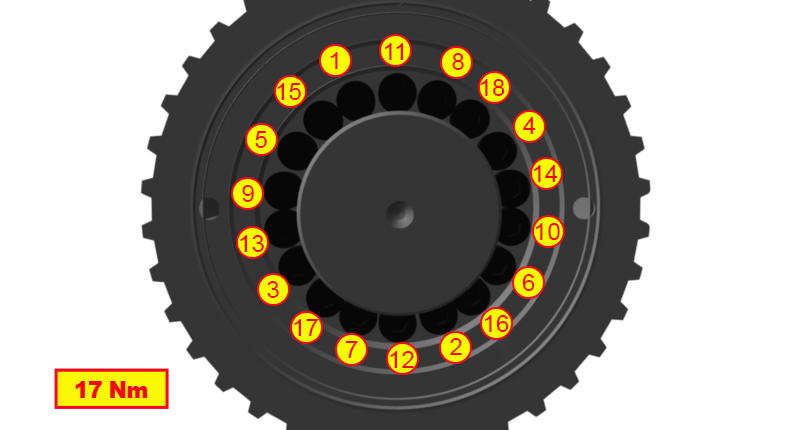

Step 9: Install Pulley and Tighten Screws

Step 10: Install Snap Ring

Step 11: Install Timing Belt Cover

Step 12: Refer to Rotary Table Motor Replacement

Refer to steps 18-25 of the Rotary Table Motor Replacement procedure for instructions on installing the motor.

Click the back button in your browser to return to this procedure.

Step 13: ECPL
