Fixture

Part Seated Location Clamp/Unclamp Check Fixture Clamping

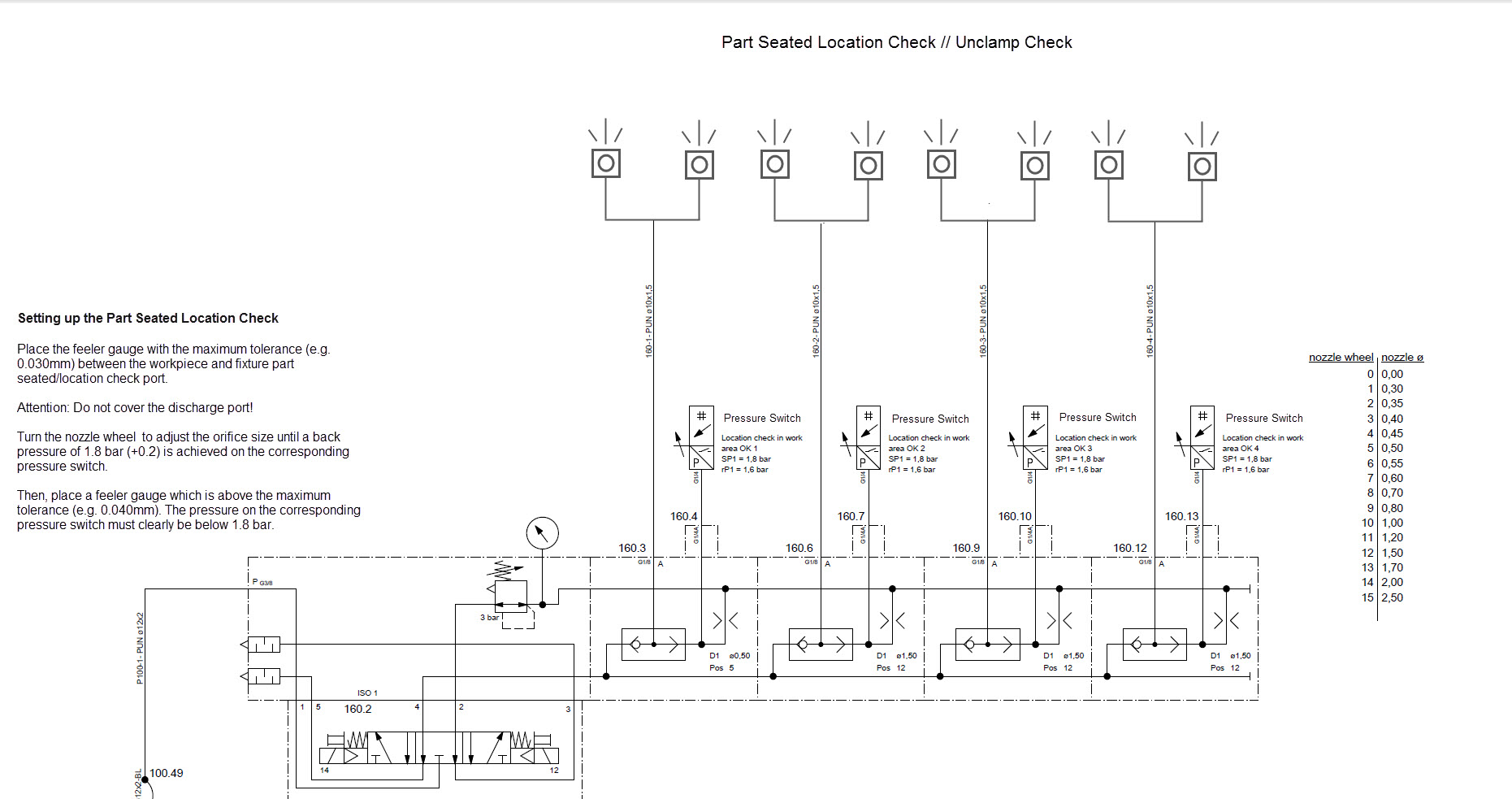

Setup of Part Seated Check

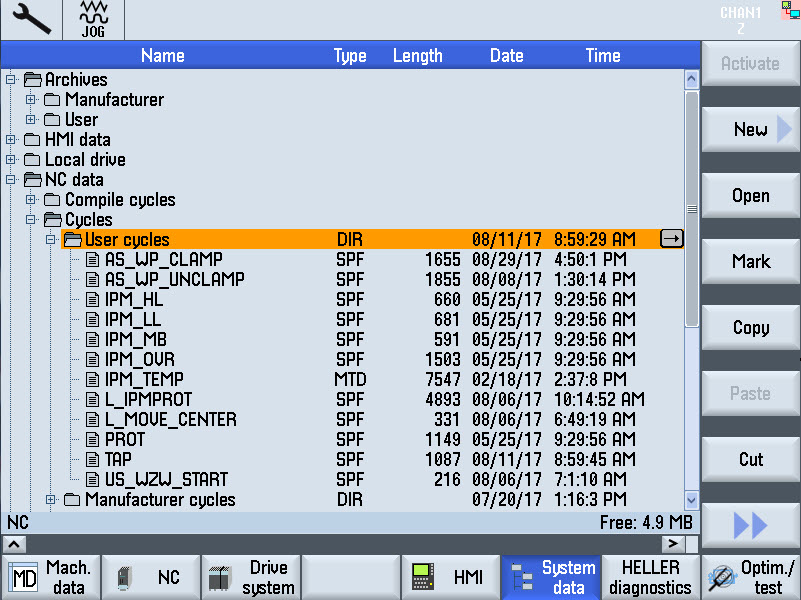

Clamping and Unclamping of the fixture is accomplished by NC programming in the NC Cycles; AS_WP_CLAMP, AS_WP_UNCLAMP & AS_WP_RECLAMP. Contained within these sub-program-files (SPF) are the necessary M and H functions to complete the various clamping and unclamping actions.

Workpiece Clamping Program Workpiece Clamping Manual
