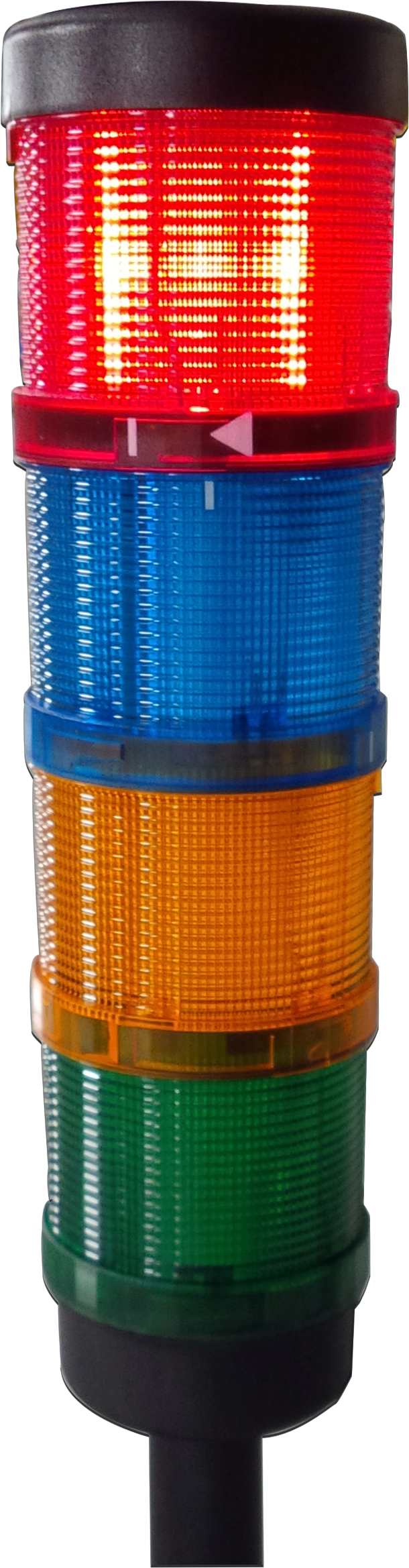

| Red |
The red lamp lights up if the machine is at a standstill for various reasons, for instance:
- If the transport equipment is still at a standstill but "Start" is pending.
- If a group fault is reported.
- In an EMERGENCY STOP situation.
Additional information is displayed in the screen. Once the cause of
the fault has been remedied, press the Fault Reset key.
|
| Blue |
The blue lamp lights up during a maintenance call that requires
operator intervention. Additional information is displayed in the
screen.
- Tool life/ New tool needed
- Quality check
|
| Yellow |
The yellow lamp lights up in the event of pre-warnings, for instance:
Flashing Yellow: Blocked
- Machining is complete, but outgoing stations/conveyor are at capacity and automation
is unable to unload part.
Solid Yellow: Starved
- Machine is waiting on automation to load part.
The machine can only be operated manually in this state (set-up,
MDI mode).
|
| Green |
The green lamp lights up when the machine is running without
limitations in linked mode and the program is continually repeated.
|
