Replace tenon block

Parts List Reference Files Tools Required Torque Chart
Note: Most common screw sizes shown. Always consult manufacturers recommendations.
Screw Size Grade Torque Specs Range
M5 12.9 7.7-10.3 N-m
M6 12.9 13.1-17.6 N-m
M8 12.9 32.1-42.6 N-m
M10 12.9 64-84 N-m
M12 12.9 110-146 N-m
M16 12.9 274-365 N-m
M20 12.9 534-712 N-m
M24 12.9 923-1231 N-m
Tools Required
1. Set of Metric Allen Wrenches
2. Set of Metric Open End Wrenches
3. Set of Metric Sockets
4. Ratchet and Extensions
5. Torque Wrench
6. Lift Assist Device
7. Depth Gauge
8. Lubricating Oil
9. Isopropyl Alcohol
10. Lint Free Rag
11. Fine Stone

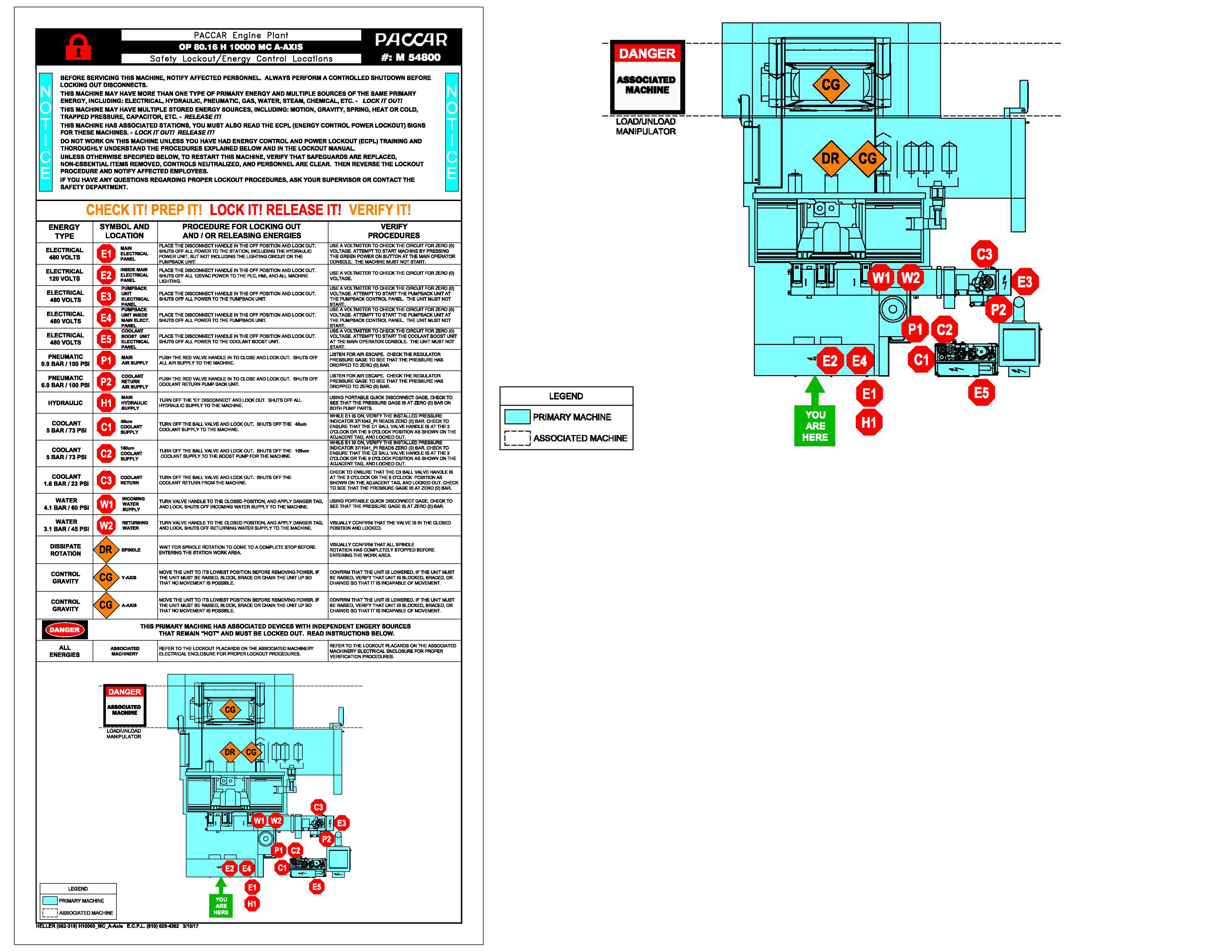

Step 1: ECPL

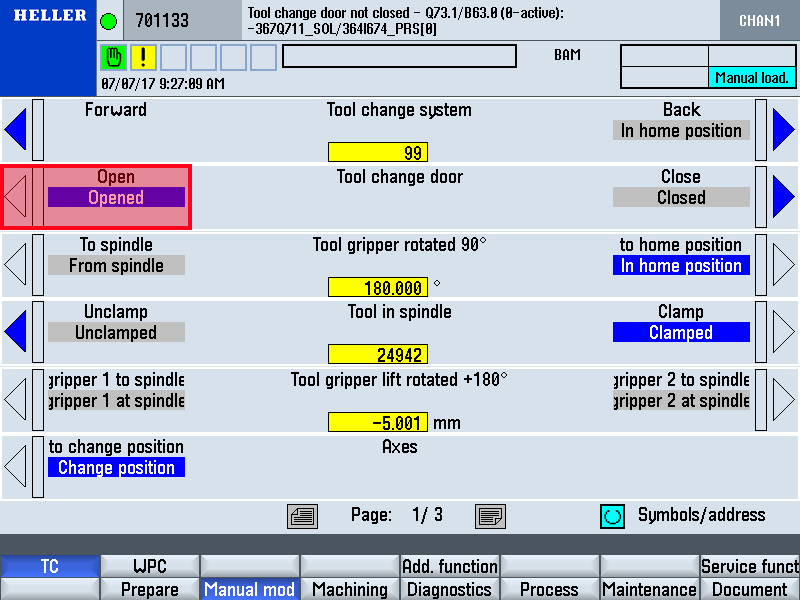

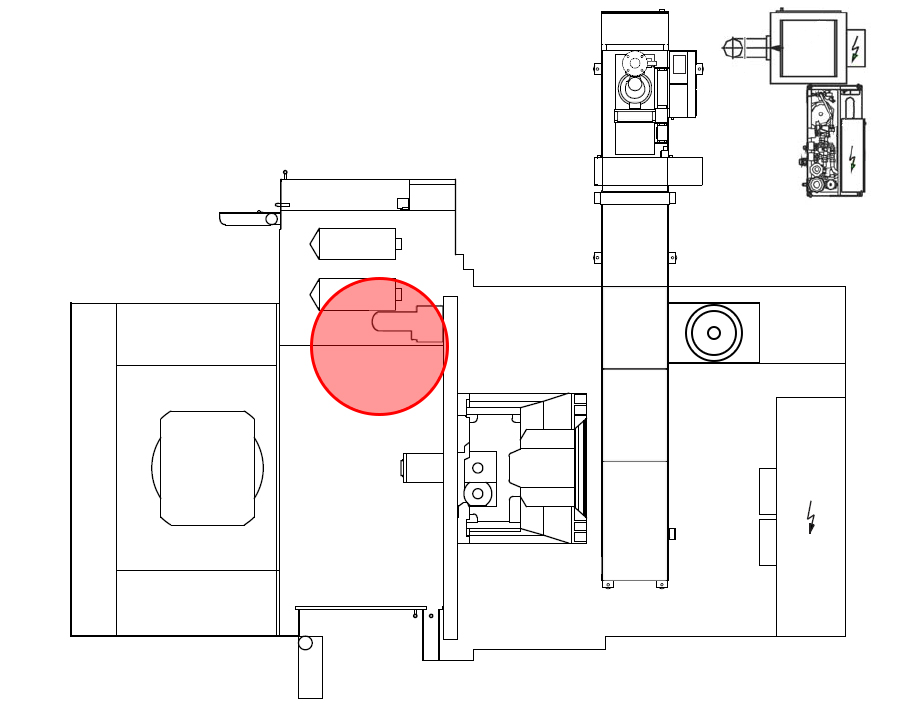

Step 2: Open Tool Change Door

Step 3: Open Work Area Safety Door

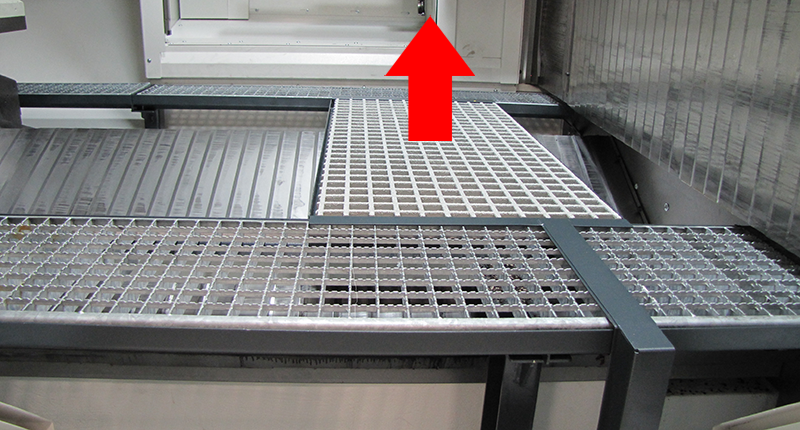

Step 4: Install Work Place Platform

Step 5: Block Tool Change Door

Step 6: Remove Screws

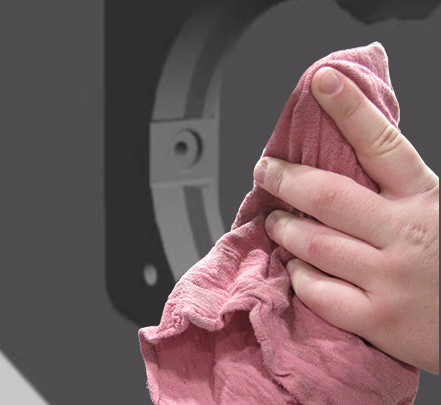

Step 7: Remove Tenon Block and Clean Mounting Surface

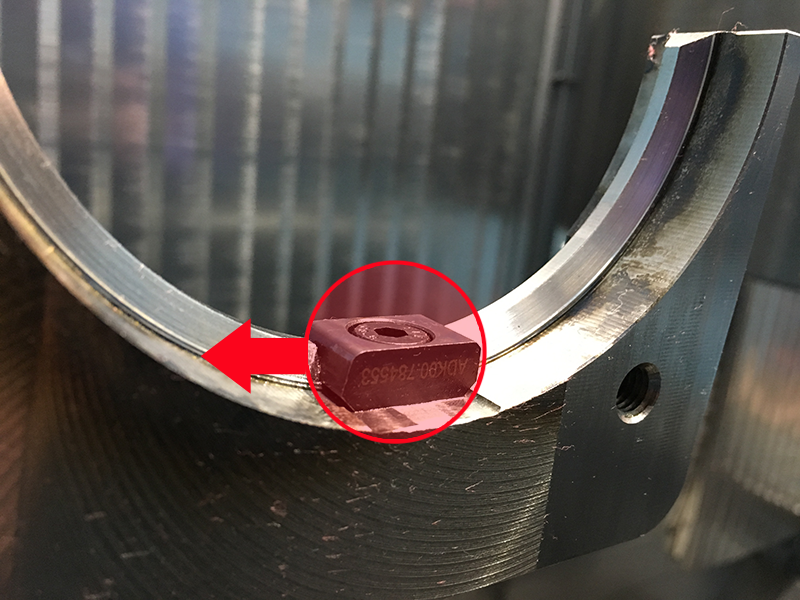

Step 8: Note Orientation of Tenon Block Before Installing

Step 9: Install Tenon Block

Step 10: Tighten Screws

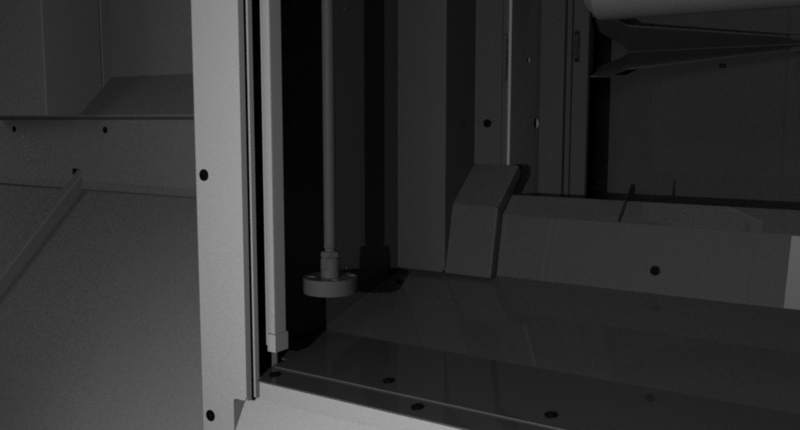

Step 11: Unblock Tool Change Door

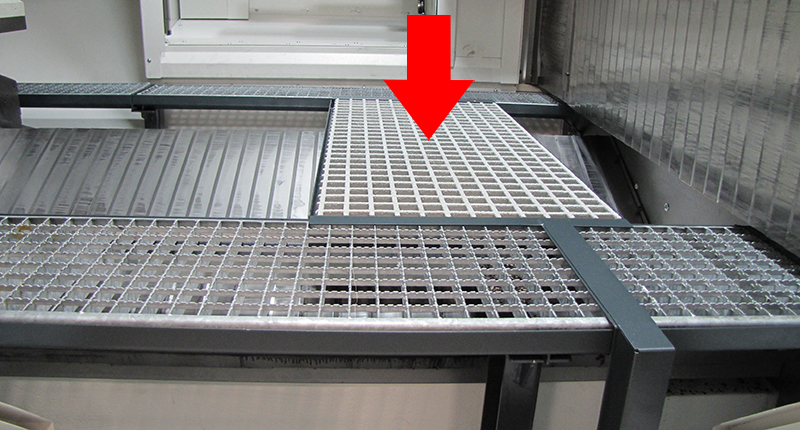

Step 12: Remove Work Place Platform

Step 13: Close Work Area Safety Door

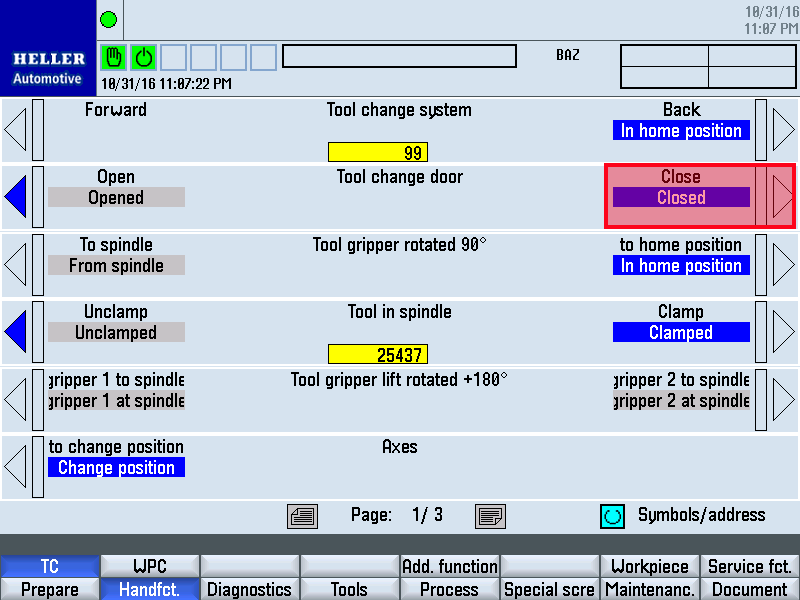

Step 14: Close Tool Change Door

Step 15: ECPL
