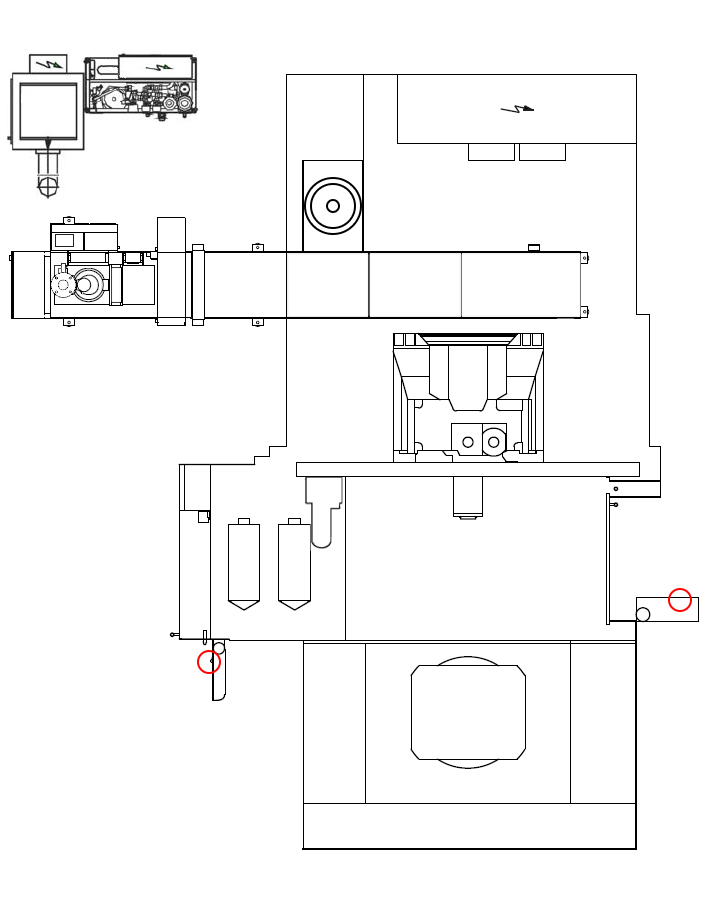

Emergency Stop Device Locations

There are (3) Emergency Stop buttons. The first is located at the Main Operating Panel. The second is located on the HT8 Teach Pendant. The third one is located on the Control unit, tool setting station.

CAUTION:
Emergency Stop buttons DO NOT remove power from all equipment.

CAUTION:
The E-Stop on the Teach Pendant is only active when the Teach Pendant is plugged in and active. This button will not function as an E-Stop if the Teach Pendant has NO POWER.
