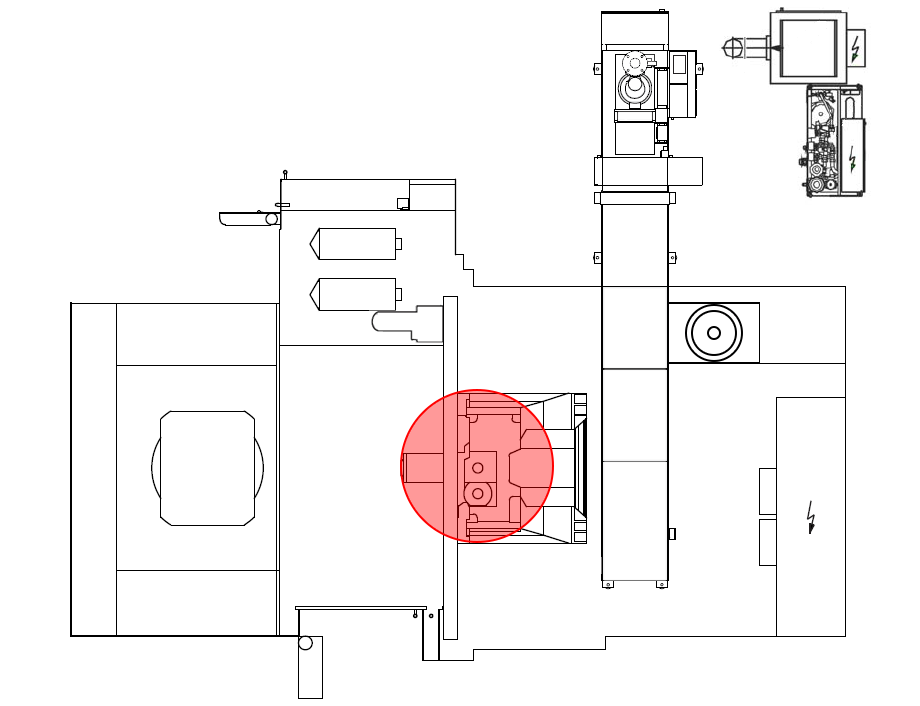

Y-Axis Length Measuring System

Parts List Reference Files Tools Required Torque Chart

Note: Most common screw sizes shown. Always consult manufacturers recommendations.
Screw Size	Grade	Torque Specs Range
M5	12.9	7.7-10.3 N-m
M6	12.9	13.1-17.6 N-m
M8	12.9	32.1-42.6 N-m
M10	12.9	64-84 N-m
M12	12.9	110-146 N-m
M16	12.9	274-365 N-m
M20	12.9	534-712 N-m
M24	12.9	923-1231 N-m

Tools Required
1.	Set of Metric Allen Wrenches
2.	Set of Metric Open End Wrenches
3.	Set of Metric Sockets
4.	Ratchet and Extensions
5.	Torque Wrench
6.	Lift Assist Device
7.	Depth Gauge
8.	Lubricating Oil
9.	Isopropyl Alcohol
10.	Lint Free Rag
11.	Fine Stone

Step 1: ECPL

Step 2: Jog X/Y to center of travel

Step 3: Open Work Area Safety Door

Step 4: Remove Guarding Screws

Step 5: Open Guarding

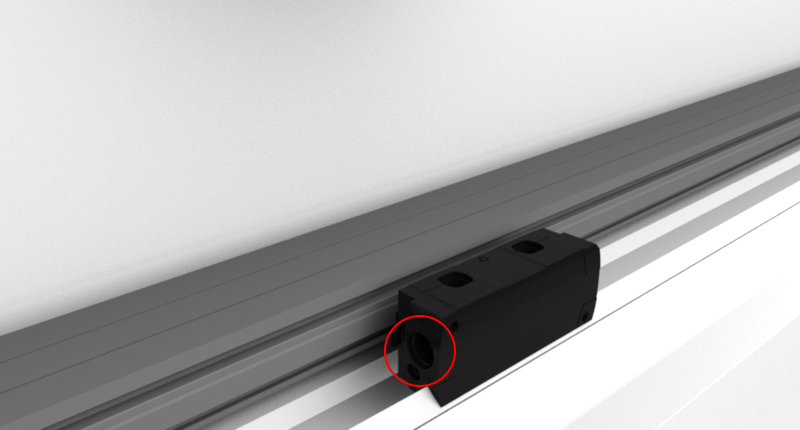

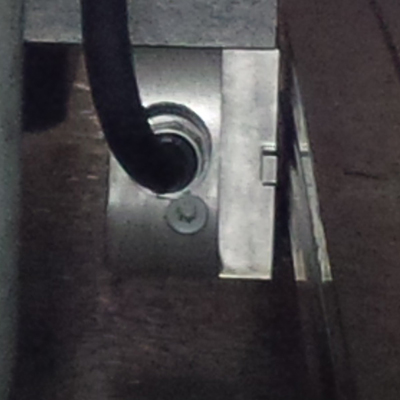

Step 6: Remove Electric Connection and Air Purge

Step 7: Remove Screws to Measuring System

Step 8: Unscrew Measuring Scale

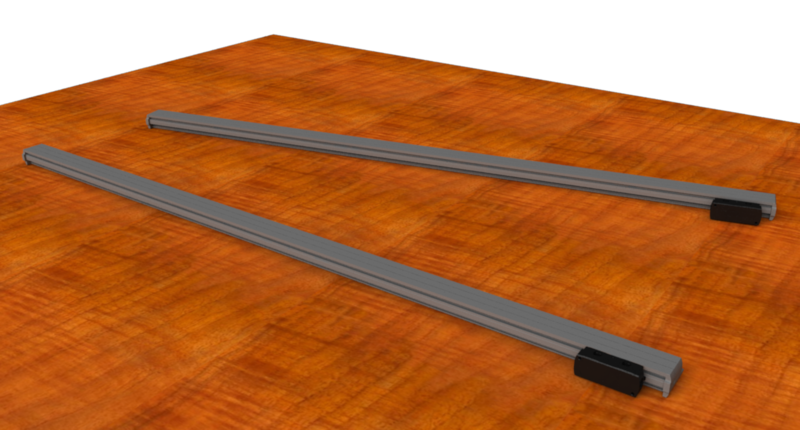

Step 9: Remove Scale from Machine

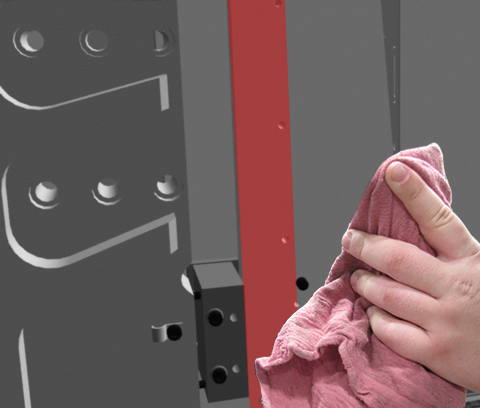

Step 10: Make certain mounting surface is clean

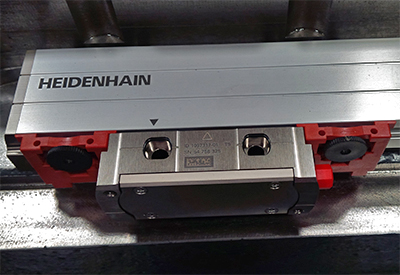

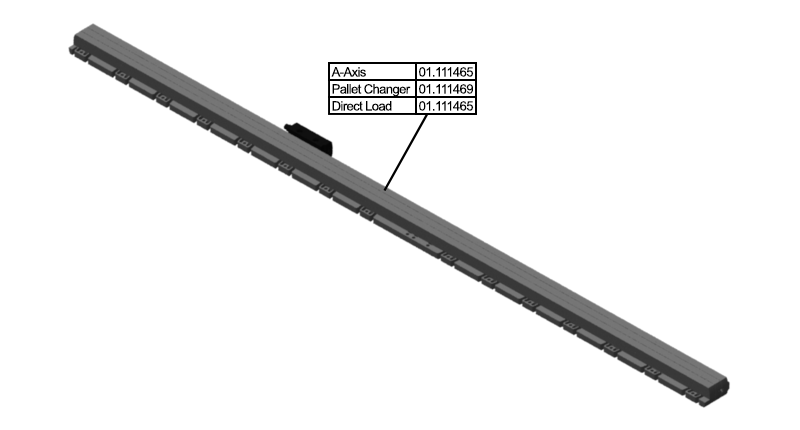

Step 11: Replace with New Scale (will have shipping brackets)

Step 12: Install new Scale into machine (align to pins)

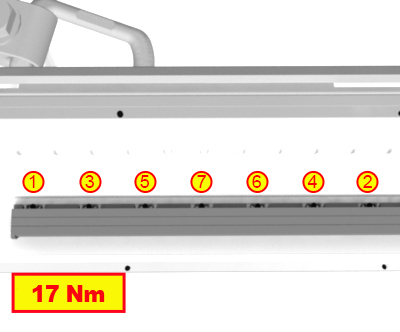

Step 13: Screw in Scale

Step 14: Install Screws Back into Measuring System

Step 15: Install Air Purge and Electrical Connection

Step 16: Close Guarding

Step 17: Insert Guarding Screws

Step 18: Close Work Area Safety Door

Step 19: ECPL
