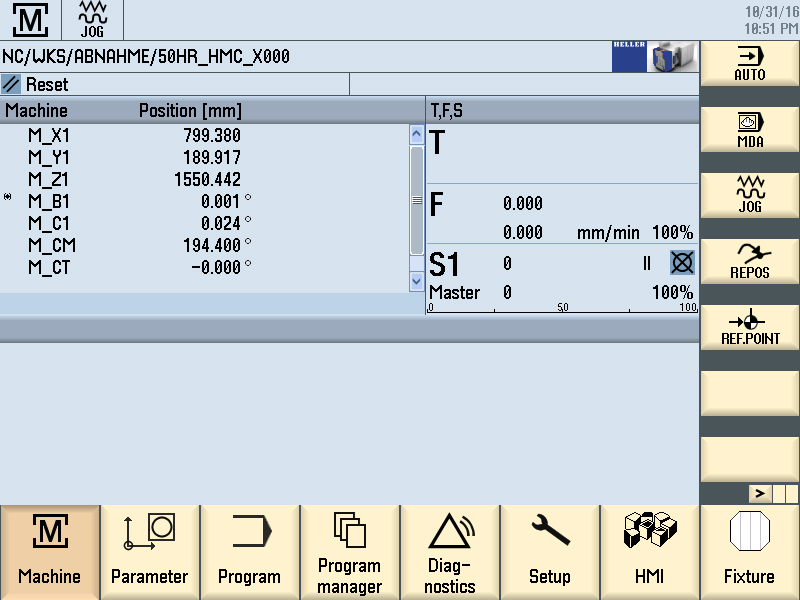

HMI Interface Screen Overview Direct Load

Rollover and click an HMI button below to see overview of menu screen

Press Menu Key
to return to Main Menu

Machine Menu

  • T,S,M
  • Set WO
  • Measure Workpiece
  • Measure Tool
  • Position
  • Face Mill.
  • Swivel

Parameter Menu

  • Tool List
  • Tool Wear
  • Tool
  • Magazine
  • Work Offset
  • User Variable
  • Setting Data

Program Menu

  • NC
  • Local Drive
  • USB

Program Manager Menu

  • NC
  • Local Drive
  • USB

Diagnostics Menu

  • Alarm List
  • Messages
  • Alarm Log
  • NC/PLC Variab.
  • Remote Diag.
  • Version

Setup Menu

  • Mach. Data
  • NC
  • Drive System
  • HMI
  • System Data
  • Heller Diagnostics
  • Optim./Test

HMI Menu

  • Prepare
  • Hand Functions
  • Diagnostics
  • Tools
  • Process
  • Special Screen
  • Maintenance
  • Document

Fixture Menu

  • Machine
  • Fixture
  • Loading Type List
