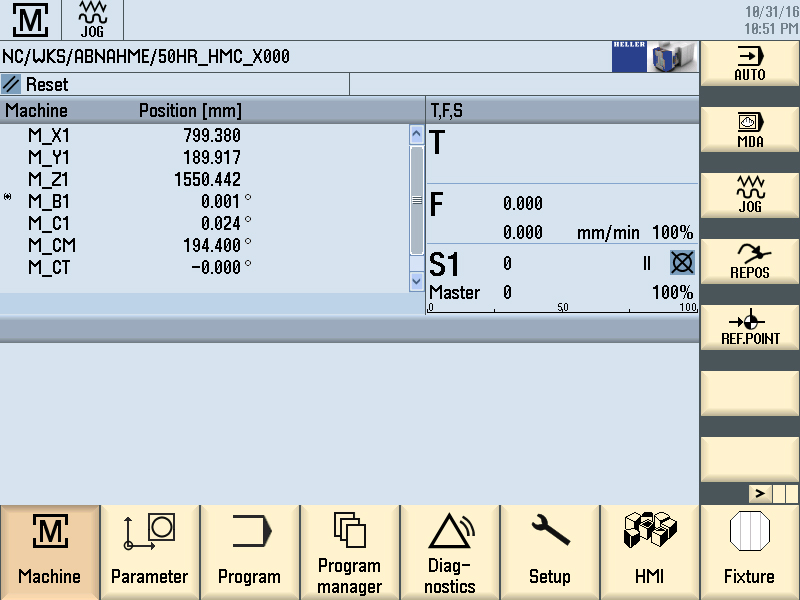

HMI Interface Screen Overview A-Axis

Rollover and click an HMI button below to see overview of menu screen

Press Menu Key
to return to Main Menu

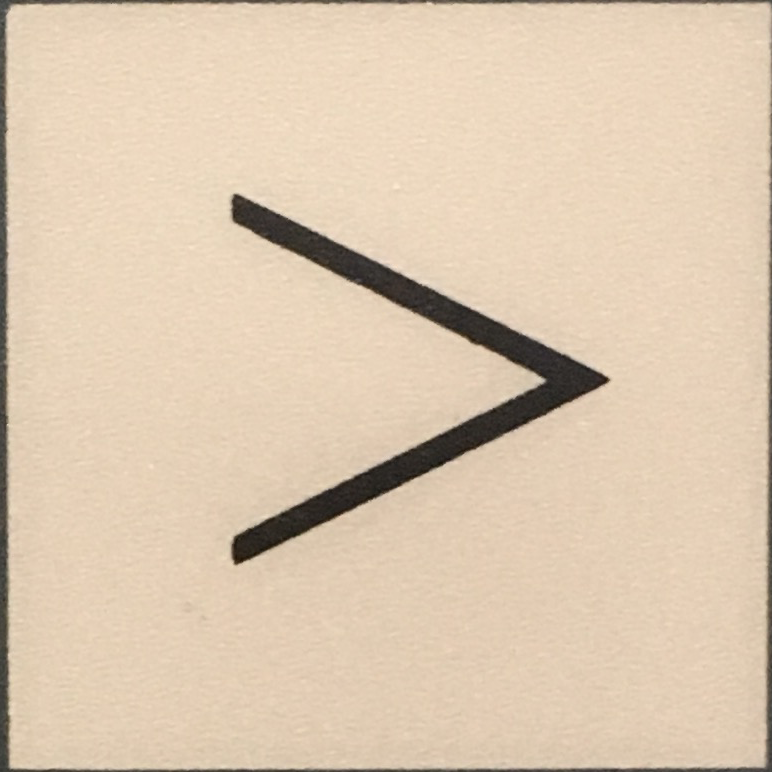

Press Right Key
to go to second page

Machine Menu

  • T,S,M
  • Set WO
  • Measure Workpiece
  • Measure Tool
  • Position
  • Face Mill.
  • Swivel

Parameter Menu

  • Tool List
  • Tool Wear
  • Tool
  • Magazine
  • Work Offset
  • User Variable
  • Setting Data

Program Menu

  • NC
  • Local Drive
  • USB

Program Manager Menu

  • NC
  • Local Drive
  • USB

Diagnostics Menu

  • Alarm List
  • Messages
  • Alarm Log
  • NC/PLC Variab.
  • Remote Diag.
  • Version

Setup Menu

  • Mach. Data
  • NC
  • Drive System
  • HMI
  • System Data
  • Heller Diagnostics
  • Optim./Test

HMI Menu

  • Prepare
  • Hand Functions
  • Diagnostics
  • Tools
  • Process
  • Special Screen
  • Maintenance
  • Document

Fixture Menu

  • Machine
  • Fixture
  • Loading Type List
Return to Machine Selection
