Closing and Locking Safety Doors

Step 1:

DANGER:
Danger of injury.

Before closing the safety door, check that nobody is in the work area.


Close the work area safety door.

Step 2:

Press the 'Lock Doors' on the main operator panel.

  • The safety doors is locked.
  • The relevant key lamp extinguishes.

Step 1:

With 'Data Menu' key call up basic menu on the main operator panel.

Press the 'HMI' Softkey.

  • the "Setup Functions to HMI Standards" menu item appears.

Press the lower horizontal softkey 'Manual function'

  • The menu of 'Manual Functions' area is opened.

Step 2:

Press the upper horizontal softkey 'Additional fu."

  • The menu of the "Additional functions" area is opened (3rd menu level).

Press the horizontal softkey 'Safety Doors'

  • The "Safety Doors" HMI screen is opened.
  • The left marked display fields show safety doors that are open and/or not locked.

Step 3:

Press the 'Setup' key

Step 4:

Press the right softkey '...' of the respective safety door, which is not closed and/or locked.

  • The corresponding safety door is locked.
  • The right status field "locked" (and/or "Closed") is marked.

Step 1:

With 'Data Menu' key call up basic menu on the main operator panel.

Press the 'HMI' Softkey.

  • the "Setup Functions to HMI Standards" menu item appears.

Press the lower horizontal softkey 'Manual function'

  • The menu of 'Manual Functions' area is opened.

Step 2:

Press the upper horizontal softkey 'Additional fu."

  • The menu of the "Additional functions" area is opened (3rd menu level).

Press the horizontal softkey 'Safety Doors'

  • The "Safety Doors" HMI screen is opened.
  • The left marked display fields show safety doors that are open and/or not locked.

Step 3:

Press the 'Setup' key

Step 4:

Press the right softkey '...' of the respective safety door, which is not closed and/or locked.

  • The corresponding safety door is locked.
  • The right status field "locked" (and/or "Closed") is marked.

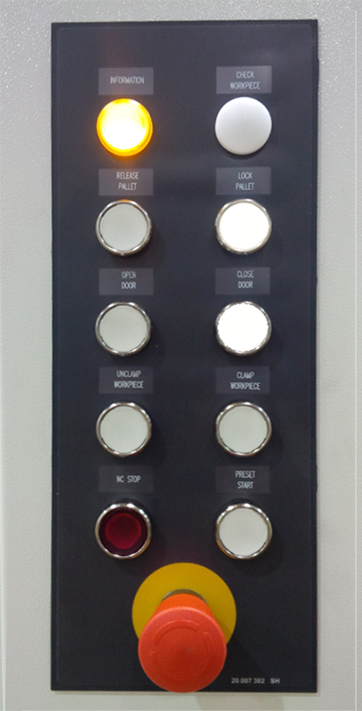

Step 1:

Make sure Machine is powered On.
See "Power Procedures"

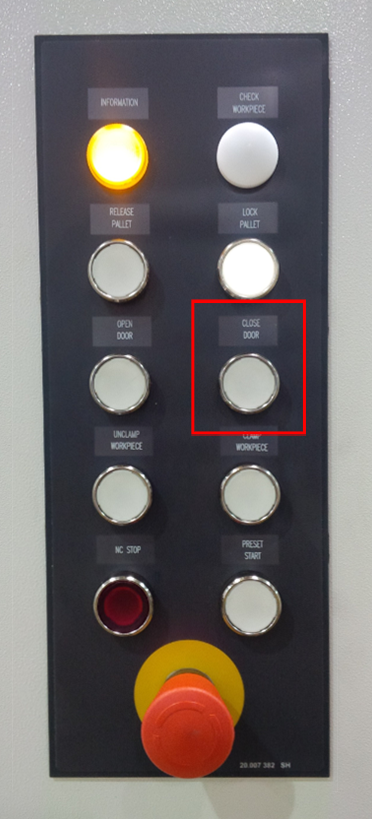

Step 2:

Press the Close Door Button.

Step 3:

The Pallet Changer safety door will begin closing and the light will be flashing during the process.

Step 4:

When the door is closed, it will automatically lock and the light will be solid.

Step 1:

Close the tool loading station safety door.

Step 2:

Press the SAFETY DOOR REQUEST TOOL MAGAZINE on the operating panel of the tool setting station.

  • The tool setting station door is locked
  • The key lamp extinguishes.

Step 1:

With 'Data Menu' key call up basic menu on the main operator panel.

Press the 'HMI' Softkey.

  • the "Setup Functions to HMI Standards" menu item appears.

Press the lower horizontal softkey 'Manual function'

  • The menu of 'Manual Functions' area is opened.

Step 2:

Press the upper horizontal softkey 'Additional fu."

  • The menu of the "Additional functions" area is opened (3rd menu level).

Press the horizontal softkey 'Safety Doors'

  • The "Safety Doors" HMI screen is opened.
  • The left marked display fields show safety doors that are open and/or not locked.

Step 3:

Press the 'Setup' key

Step 4:

Press the right softkey '...' of the respective safety door, which is not closed and/or locked.

  • The corresponding safety door is locked.
  • The right status field "locked" (and/or "Closed") is marked.
