Securing Machining Unit to Prevent it from Falling

The Y-axis drive is not self-locking. Persons in the traversing range of the machining unit may be seriously injured if the drive motor holding break fails. In the event of a collision, the Y-axis can drop down further even if it is in the lower end position of the traversing range. The machining unit must be supported before work is carried out in the danger zone.

Screw chock of suitable size

Before Starting Work

Step 1:

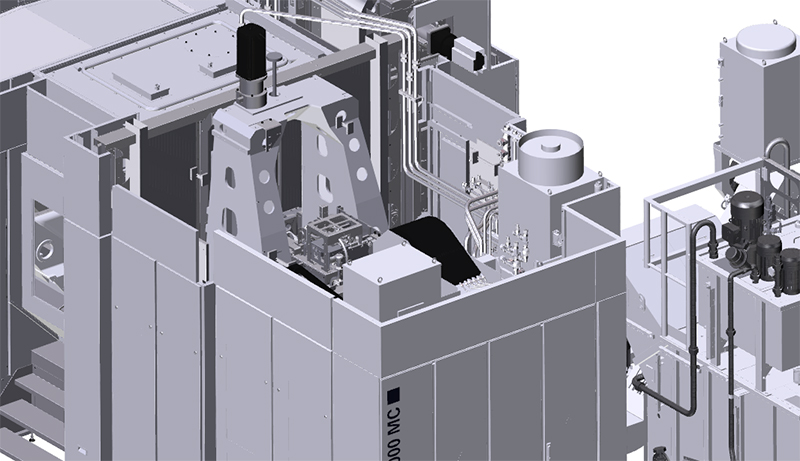

The machine is ready for production.

Step 2:

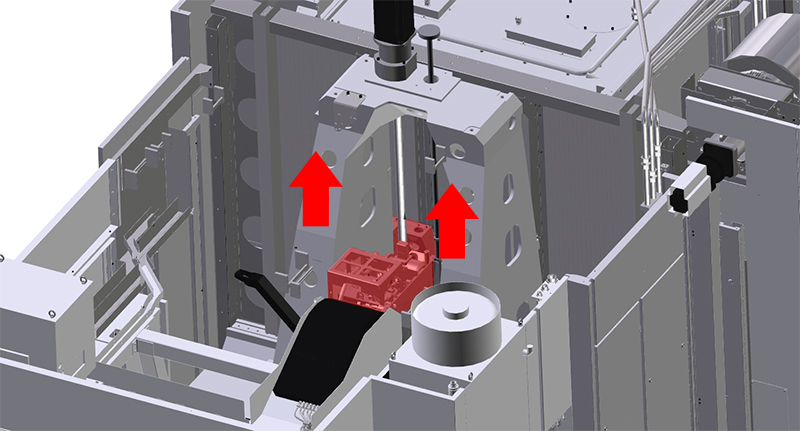

Moving machining unit to a suitable height.

Step 3:

Switch off machine at main switch and secure against being switched on again.

Step 4:

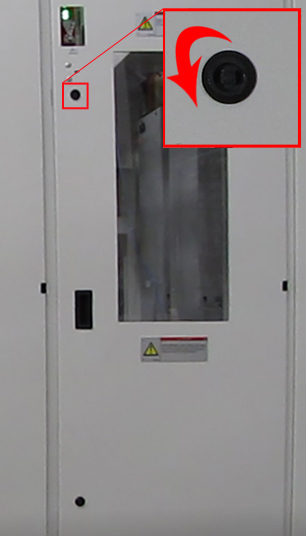

Unlock and open maintenance area safety door.

Step 5:

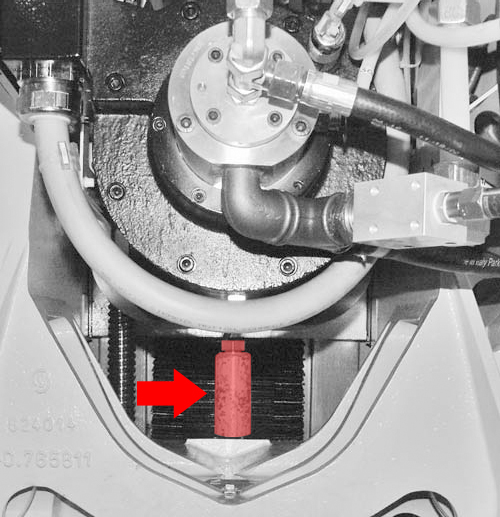

Support machining unit in column with the aid of screw chock.

On Completion of Work

Procedure

Remove Screw chock.

Before closing the maintenance safety door, ensure that nobody is behind the guard panels. Close and lock maintenance area safety door.
