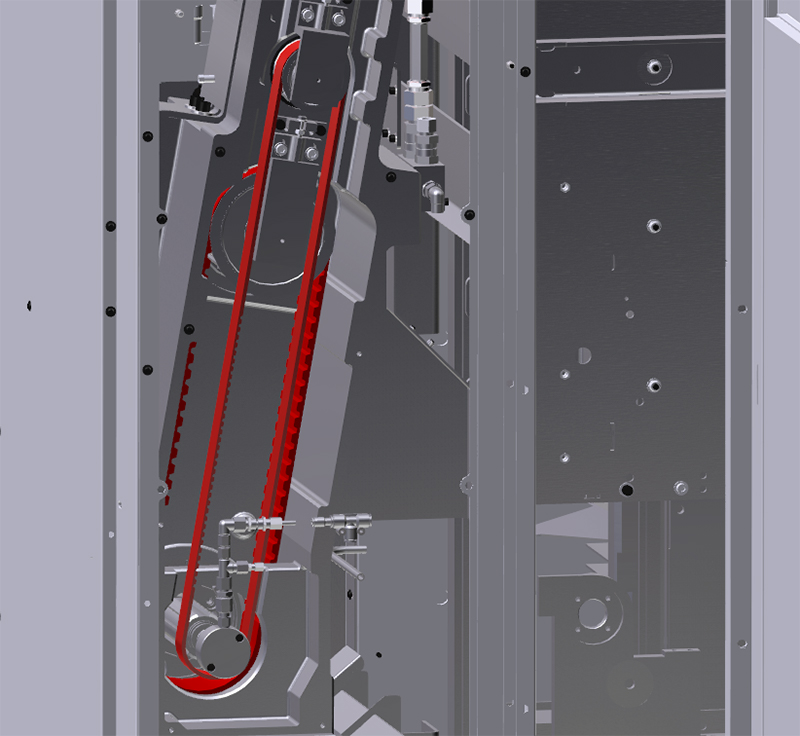

Replace Timing Belt of Tool Changer

Interval

10000 Hours Operating time

Component

Tool changer

The timing belt must be replaced at regular intervals in order to avoid fatigue break. This activity must only be carried out by specially trained personnel.

Please observe chapter 4.2 "Special safety measures" when entering or leaving the machine.

:Step 1:

Compressed air shut-off valve closed and secured to prevent opening.

:Step 2:

Open safety doors and maintenance openings to make tool changer accessible.

:Step 3:

Switch off machine at main switch and secure against being switched on again.

:Step 4:

Have the timing belt replaced by customer service.

:Step 5:

Before closing the safety doors and maintenance openings, ensure that nobody is behind the guard panels. Close safety doors and maintenance openings.

:Step 6:

Open compressed air shut-off valve.
