Lubricate guideways of the tool change door.

Interval

2 Year(s) Real time

Component

Guide of tool change door

Consumable

Lubricating grease K2K-20 to DIN 51825, Part 2.

Used greases and dirty cloths should be regarded as hazardous waste and must be disposed of according to the locally applicable regulations.

Ladder

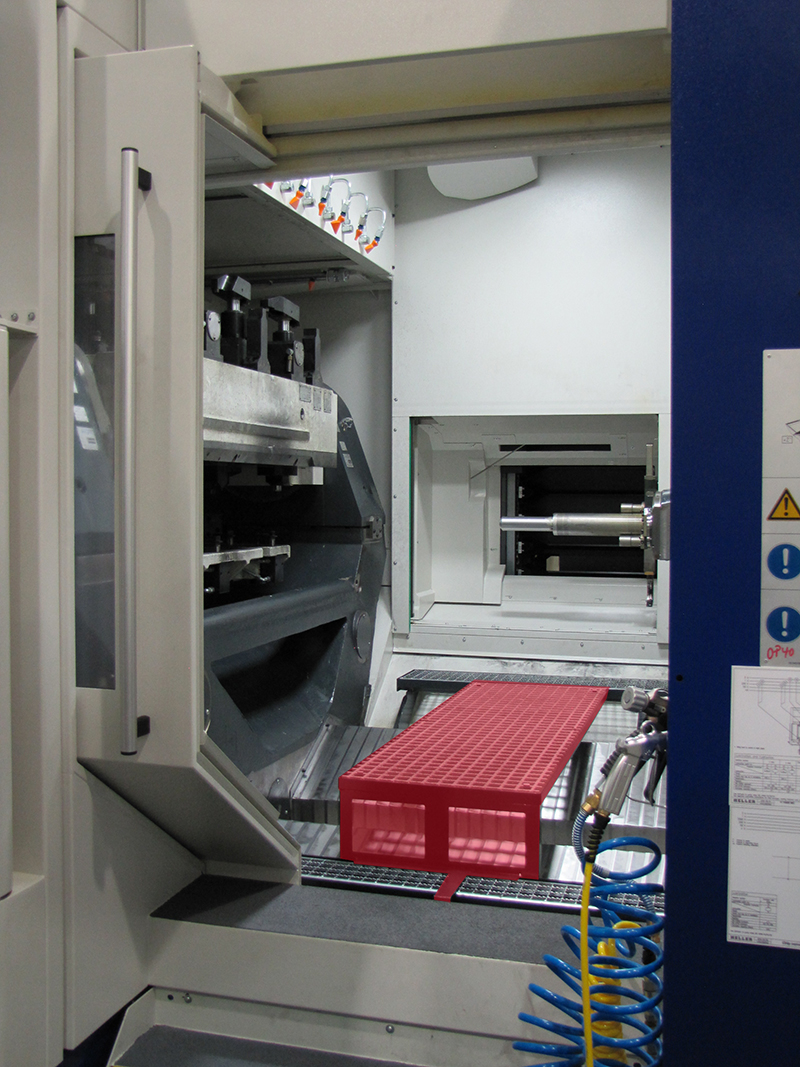

Please observe "Special safety measures" when entering or leaving the machine. Exercise extreme caution when working in the work area with unsecured machining unit. Avoid working below the machining unit!

Step 1:

There should be no tool in the tool spindle.

Step 2:

The X, Y and Z-axes are positioned such that you can work safely on the lift door tool changer:

  • Z-axis (rotary table) to the pallet changer.
  • X axis (Frame) in centre of travel.
  • Y-axis (Machining unit) down.

Step 3:

Loading hatch closed.

Step 4:

Grant access rights for "Individual functions" operating area.

Step 5:

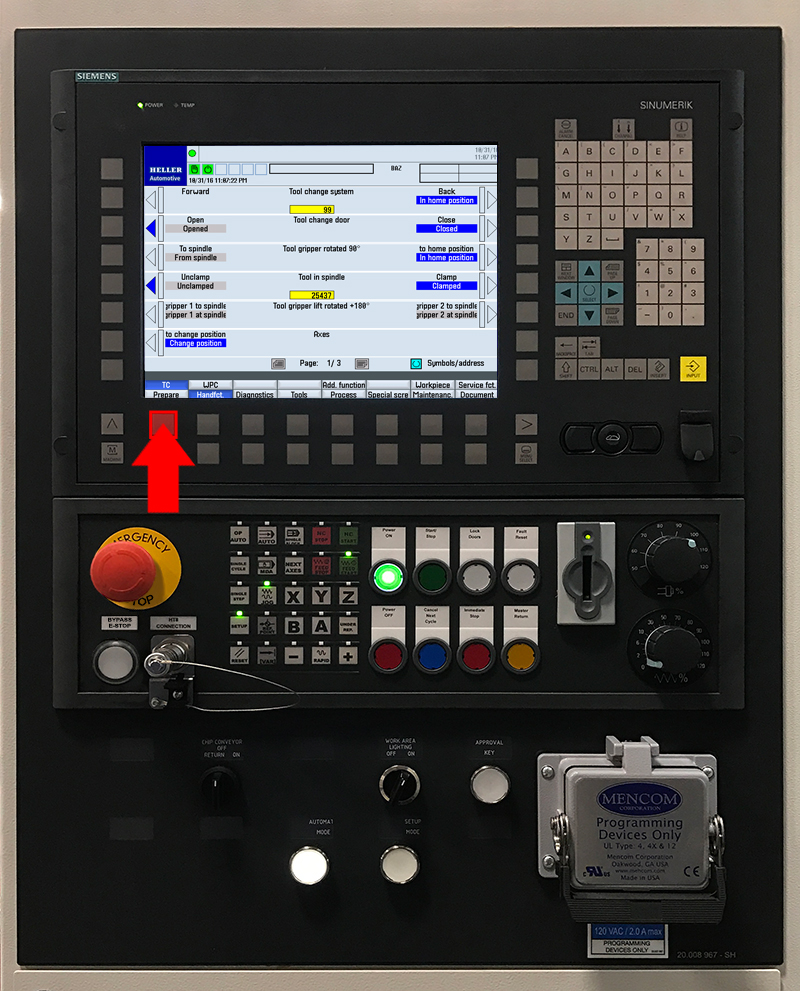

Select the "Tool change individual functions" main menu.

Step 6:

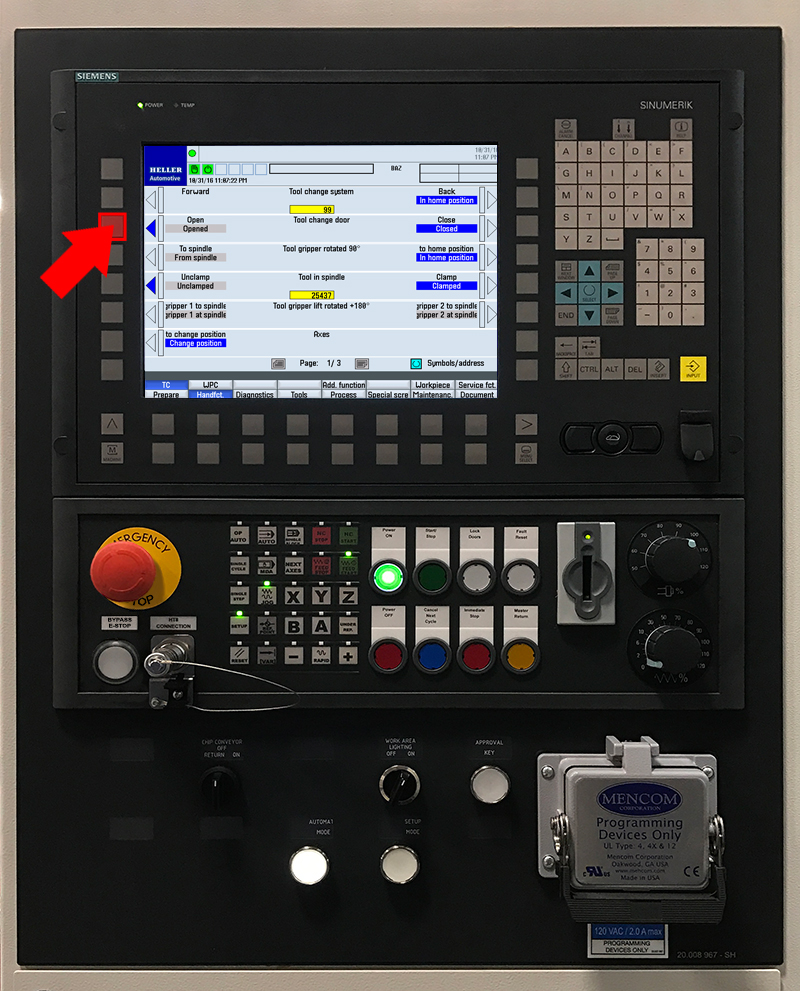

Open tool change door using the "tool change door" individual function.

Step 7:

Open work area safety door and secure to prevent closing.

Step 8:

Switch off machine at main switch and secure against being switched on again.

Step 9:

Secure tool change door to prevent it from falling.

Step 10:

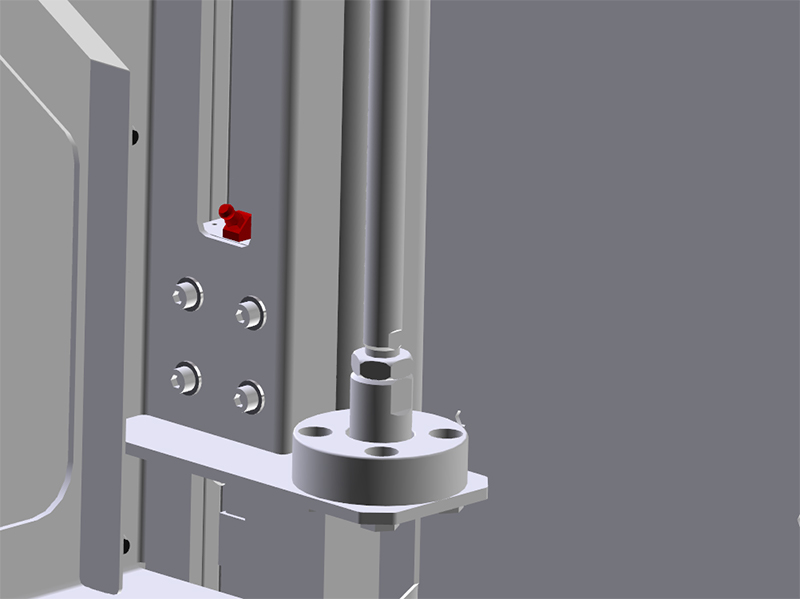

Relubricate the carriage on the lube nipple using the grease press until clean grease escapes from inside the carriage. Remove the used grease.

Step 11:

Attach the ladder so that the upper carriage of the opened tool change door can be accessed safely.

Step 12:

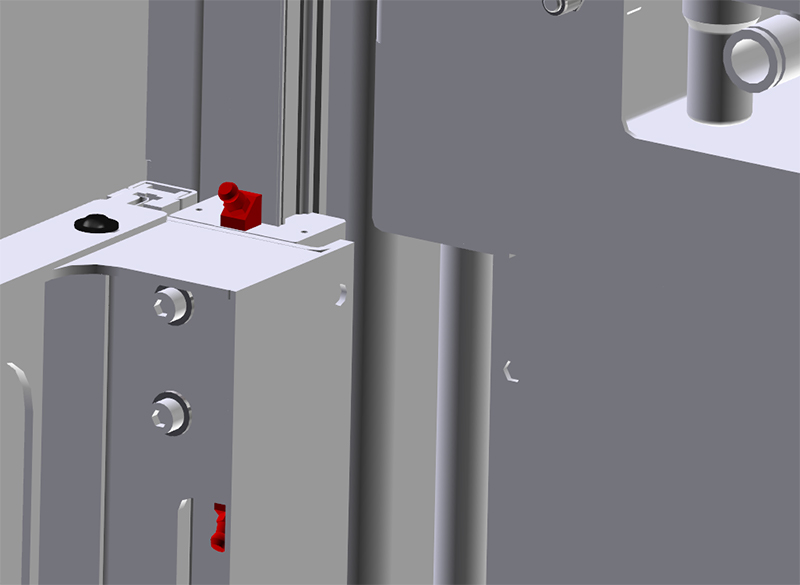

Relubricate the carriage on the lube nipple using the grease press until clean grease escapes from inside the carriage. Remove the used grease.

Step 13:

Remove ladder.

Step 14:

Remove support from the tool change door.

Step 15:

Before closing the safety door, ensure that nobody is behind the guard panels. Close work area safety door.

Step 16:

Turn on machine at the main switch.

Step 17:

Switch on motors.

Step 18:

Close tool change door using the "tool change door" individual function.

Step 19:

Revoke access rights.

Step 20:

Place a tool in the tool spindle to protect the tool spindle from the ingress of dirt.

Step 21:

Switch off motors.
