Draining Water Separator

Interval

50 Hours Operating time

Component

Water Separator

Container for collecting the compressed air condensate

Compressed air condensation is hazardous waste and should be disposed of according to the locally applicable regulations.

For the structure of the pneumatic system, see media diagram (MP).

Step 1:

Motors switched off.

Step 2:

Air supply to machine before the water separator is disabled.

Step 3:

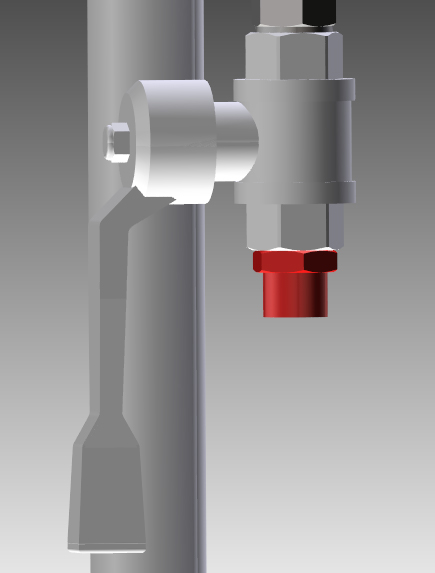

Hold container below the end of the drain pipe to collect the condensed air condensate.

Step 4:

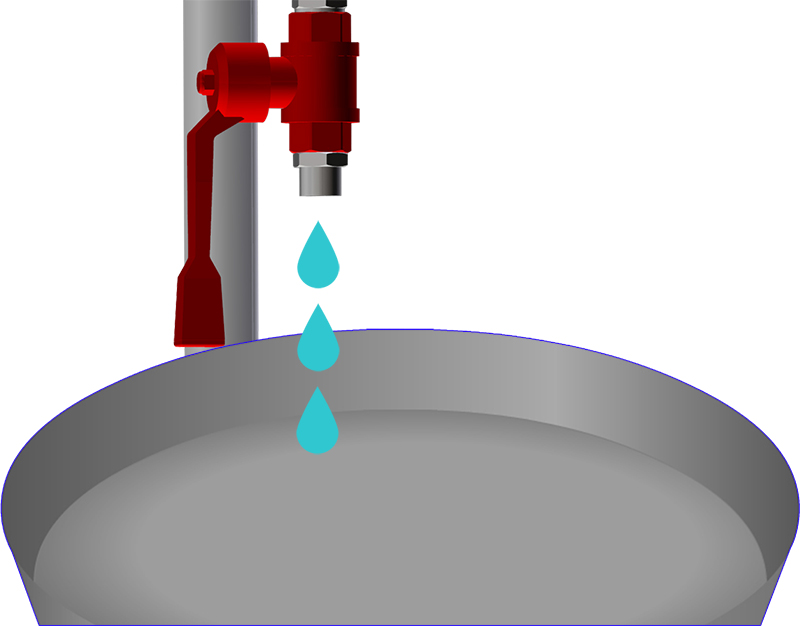

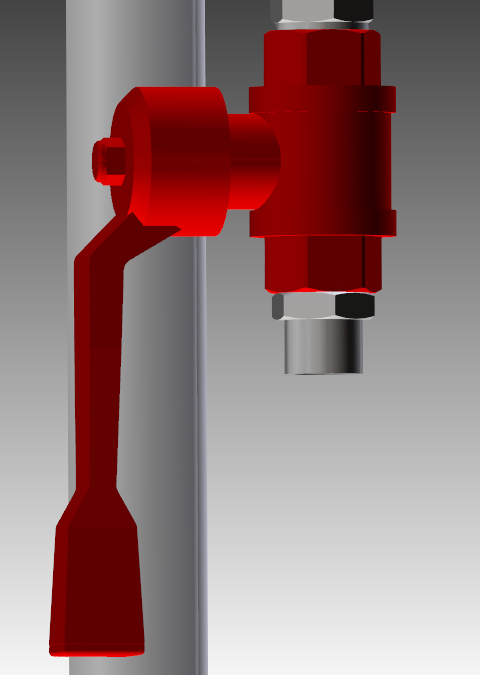

Open ball valve and let the compressed air condensate flow into the container.

Step 5:

Close ball valve.

Step 6:

Open air supply to machine
