Diagnostics

Call up the "Diagnostics" HMI operating area

Preconditions on the module operating unit:

  • "HMI" main menu open.
  • Access rights granted (EKS key).

Press lower horizontal softkey "Diagnostics".
The menu of the "Diagnostics" HMI area is opened.



Step 1:

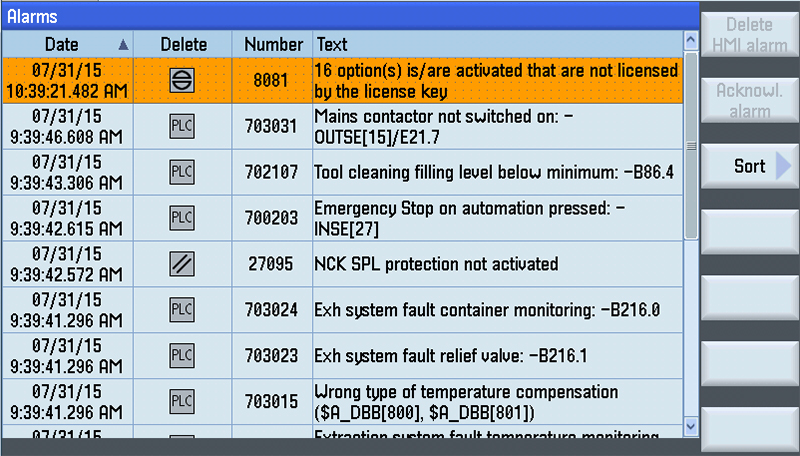

In the"Alarm List" HMI screen,you have the option of displaying all pending alarms and confirming them. The alarm overview contains the following information:

  • Date and time
  • The deletion criteria indicates which key or softkey can be used to acknowledge the alarm
  • Alarm number
  • Alarm text

Acknowledging alarm:

  • Position the cursor on an alarm.
  • Press the key indicated as acknowledge symbol.

Call up the "Diagnostics" HMI operating area

Preconditions on the module operating unit:

  • "HMI" main menu open.
  • Access rights granted (EKS key).

Press lower horizontal softkey "Diagnostics".
The menu of the "Diagnostics" HMI area is opened.



Step 1:

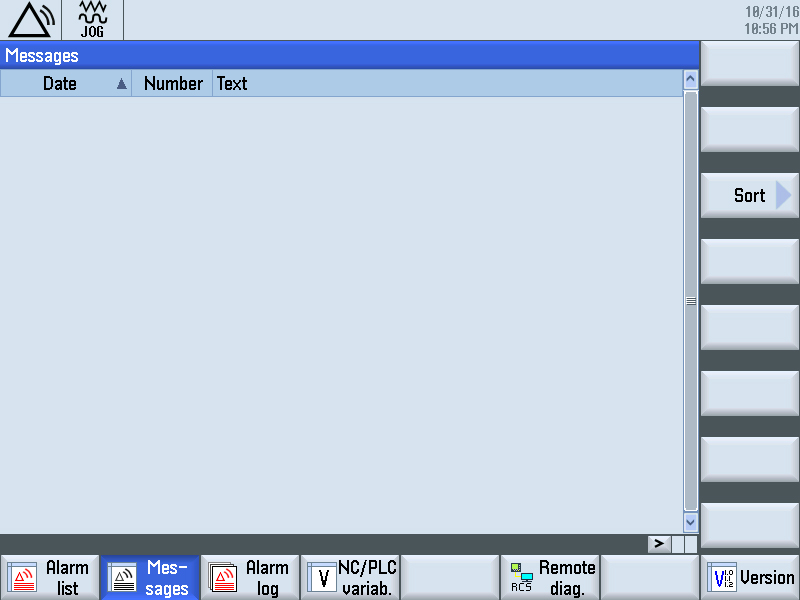

In the "Alarm messages" HMI screen, all alarm messages accumulated at that time are listed with information on their time of occurrence and their processing status.

Fault status

The status of the fault is displayed in the "Fault status" field. The following statuses are possible:

  • C = message received
  • Q = message acknowledged
  • G = message sent

Call up the "Diagnostics" HMI operating area

Preconditions on the module operating unit:

  • "HMI" main menu open.
  • Access rights granted (EKS key).

Press lower horizontal softkey "Diagnostics".
The menu of the "Diagnostics" HMI area is opened.



Alarm history

Step 1:

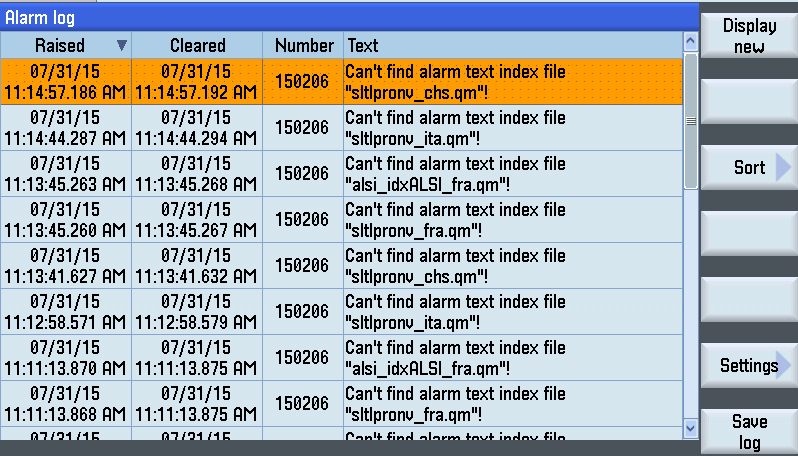

In the "Alarm Log" HMI screen, all fault messages accumulated at that time are listed with information on their time of occurrence and their processing status.

Fault status

The status of the fault is displayed in the "Fault status" field. The following statuses are possible:

  • C = message received
  • Q = message acknowledged
  • G = message sent
