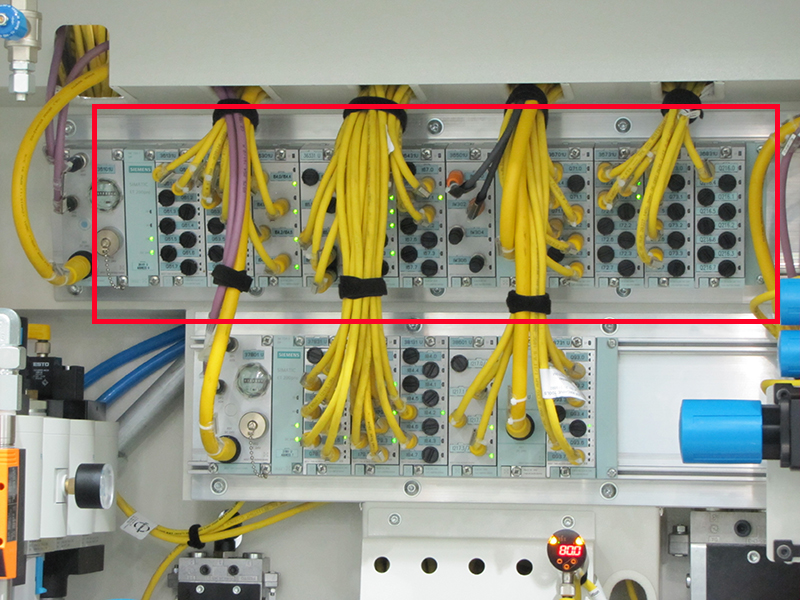

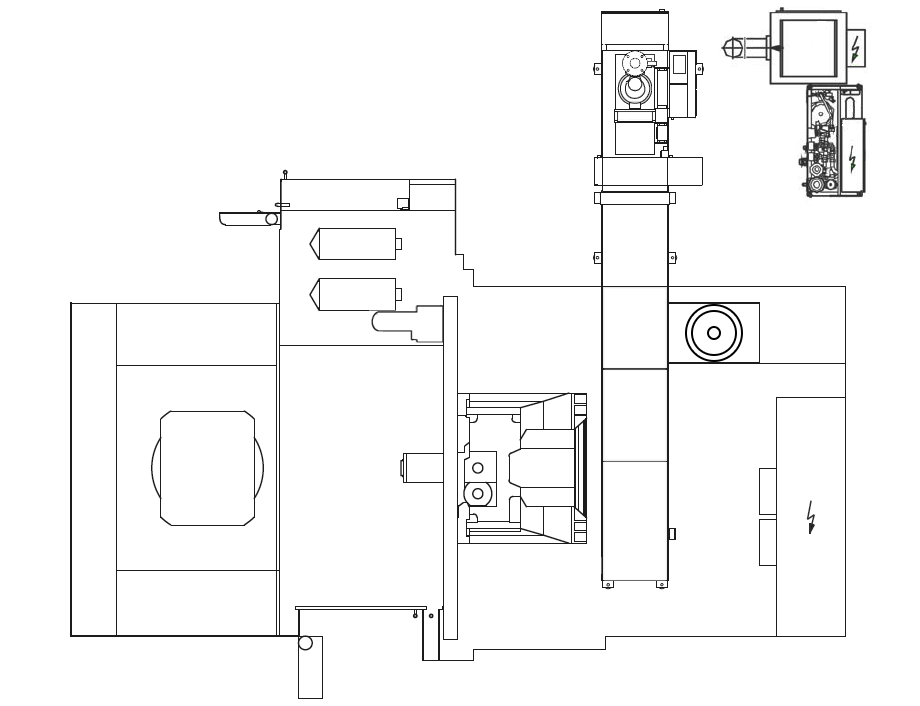

Machine I/O Modules Direct Load

Rollover a module to see close up. Click for electrical control drawing.

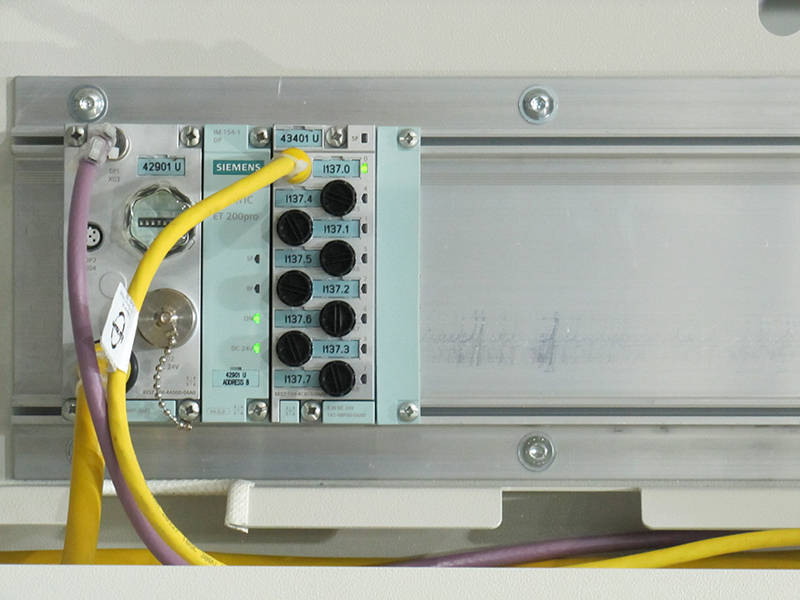

42901_U Module

  • 43401_U

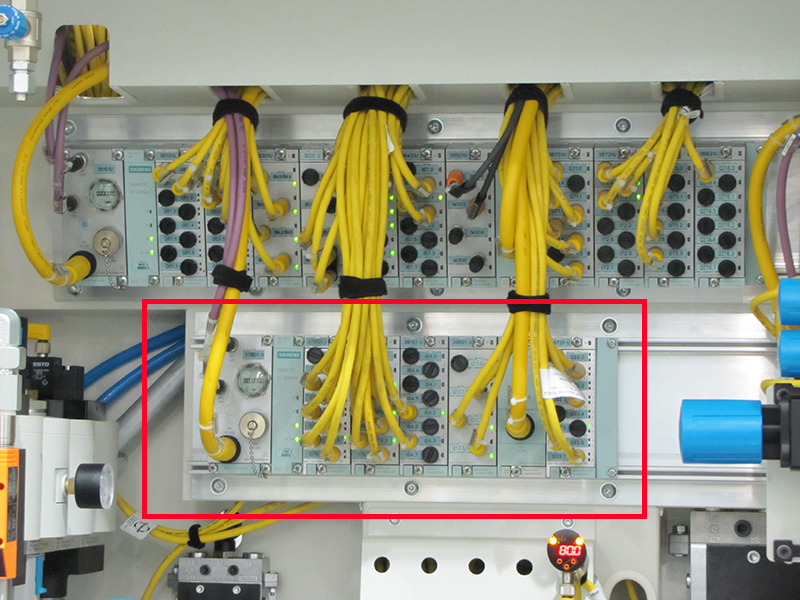

36101_U Module

  • 36131_U
  • 36231_U
  • 36301_U
  • 36331_U
  • 36401_U
  • 36431_U
  • 36501_U
  • 36635_U
  • 36701_U
  • 36731_U
  • 36801_U
  • 36831_U

37801_U Module

  • 37831_U
  • 37901_U
  • 38005_U
  • 38131_U
  • 38505_U
  • 38531_U
  • 38601_U
  • 38631_U
  • 38705_U
  • 38731_U

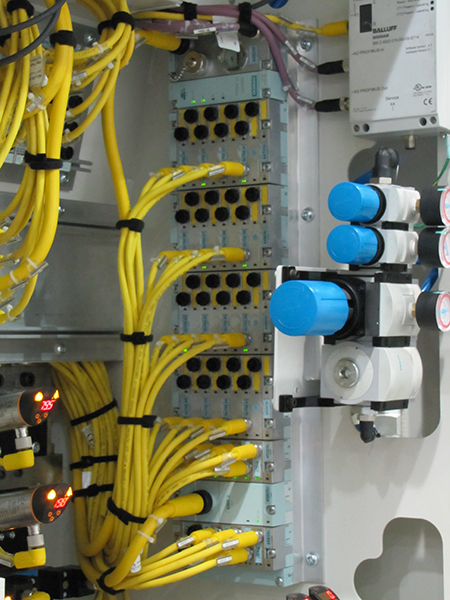

44601_U Module

  • 44701_U
  • 44801_U
  • 44901_U
  • 45001_U
  • 45201_U
  • 45805_U
  • 45831_U

PROFIBUS DP I/O is utilized for the data exchange between the PLC and these I/O modules (Field Devices). In order for this communication to occur, each I/O module on each network must have specific parameters which are defined in the PLC hardware configuration. At a minimum, each device on the network contains the Device name and Profibus Address. The I/O modules delivered in their original factory state do not have the Profibus Address or Terminating Resistor state set. When a new factory state I/O module is installed, these machine specific Profibus Addresses and Terminating Resistor states must be set either by referring to the original I/O modules or the electrical control drawings.
